Engines

Literature

Gregory, JSON. Game Engine Architecture

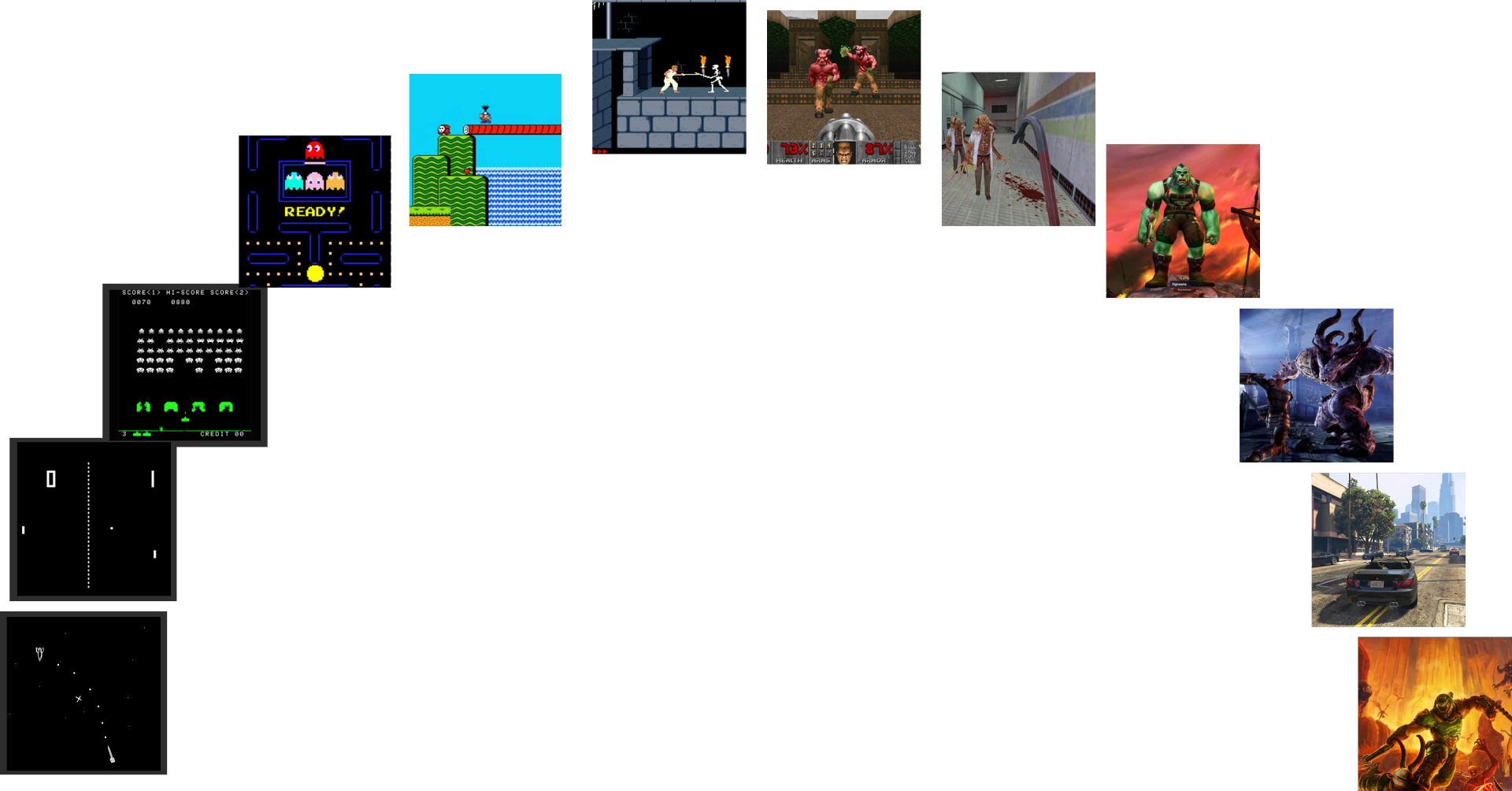

History of game engines

Pre-engine era

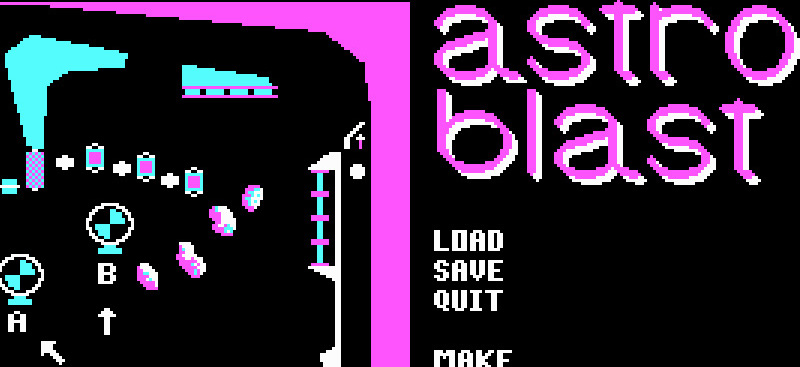

Pinball Construction Kit
1983

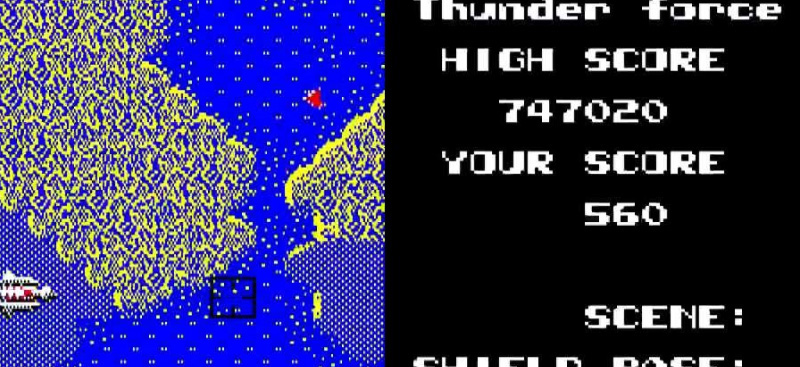

Thunder Force Construction
1984

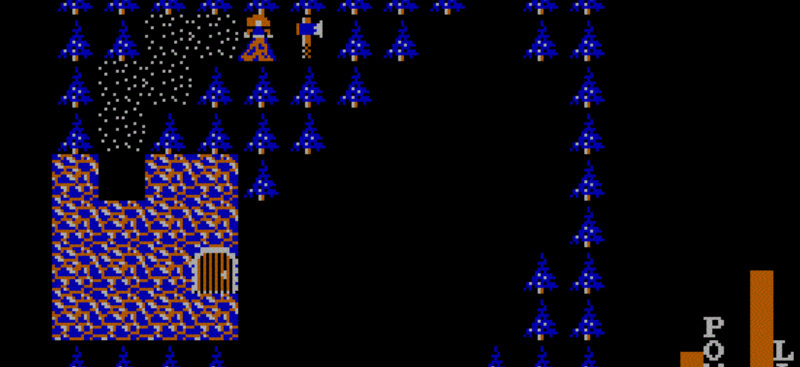

Adventure Construction Kit
1984

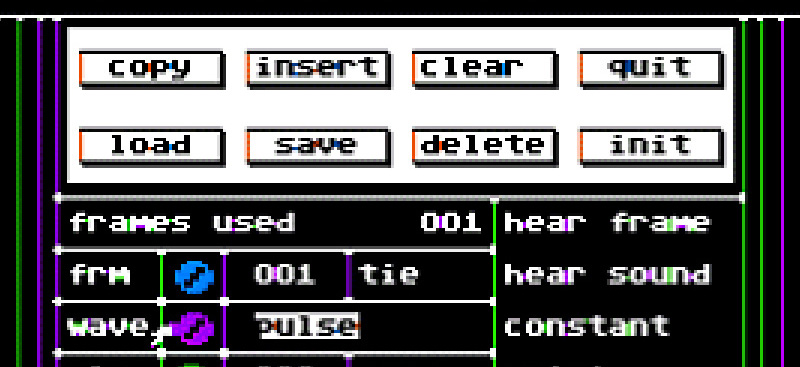

Garry Kitchen's GameMaker
1988
Arcade Construction Kit
1988

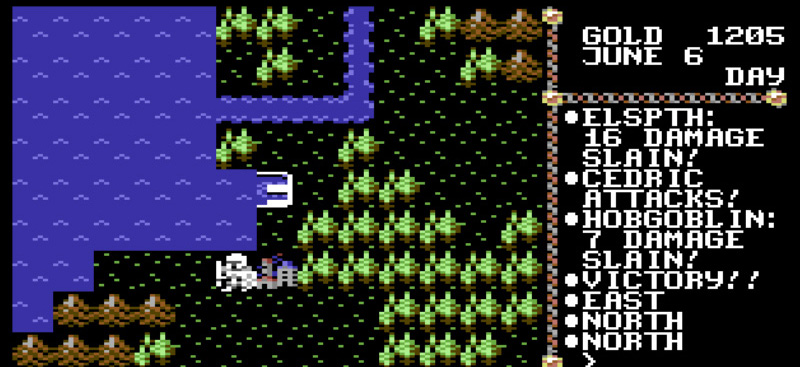

RPG Maker
1990

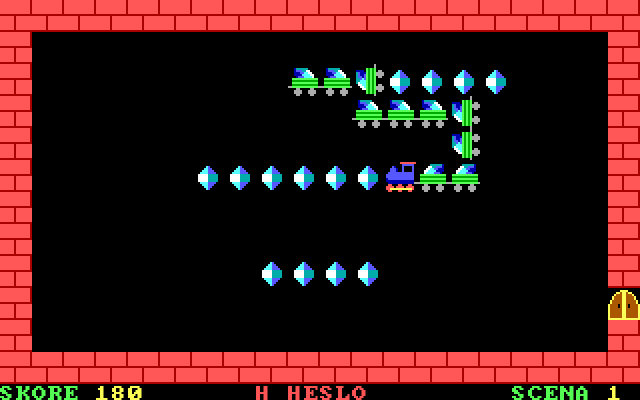

Example: Vlak (1993)

   1 ; ------ priprava pro dalsi objekt


   2 PosVlak6:add       si,3             ; adresa dalsiho objektu


   3          mov       dx,cx            ; stará pozice predesleho objektu


   4          mov       al,0


   5          cmp       ds:[si],al       ; je jiz konec vlaku?


   6          je        PosVlak7


   7          jmp       PosVlak2         ; neni konec - dalsi vagon


   8


   9 ; ------ vymazani posledniho vagonu


  10 PosVlak7:cmp       dl,-1


  11          je        PosVlak8


  12          call      DispObr          ; vymazani posledniho vagonu


  13          mov       al,20            ; pocet pozic


  14          mul       dh               ; prepocet radku na offset


  15          add       al,dl


  16          adc       ah,0


  17          add       ax,offset Pole


  18          xchg      ax,di            ; DI <- adresa v poli


  19          mov       byte ptr ds:[di],0

Source code for MS-DOS: link

ID Tech

  • family of game engines developed by ID Software
  • Id Tech 0 - the very first game engine
  • every next game had more advanced technology
  • all games were based on raycasting until 1996

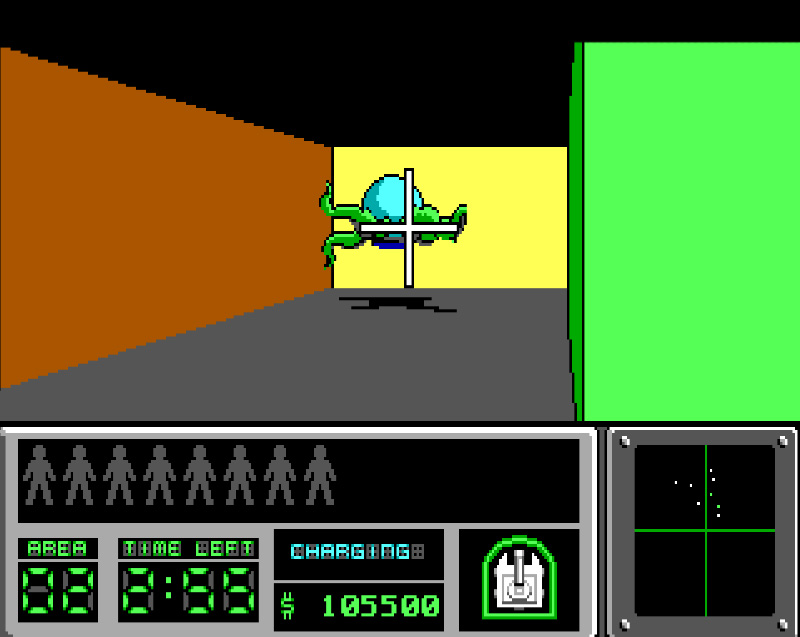

Hovertank 3-D
1991

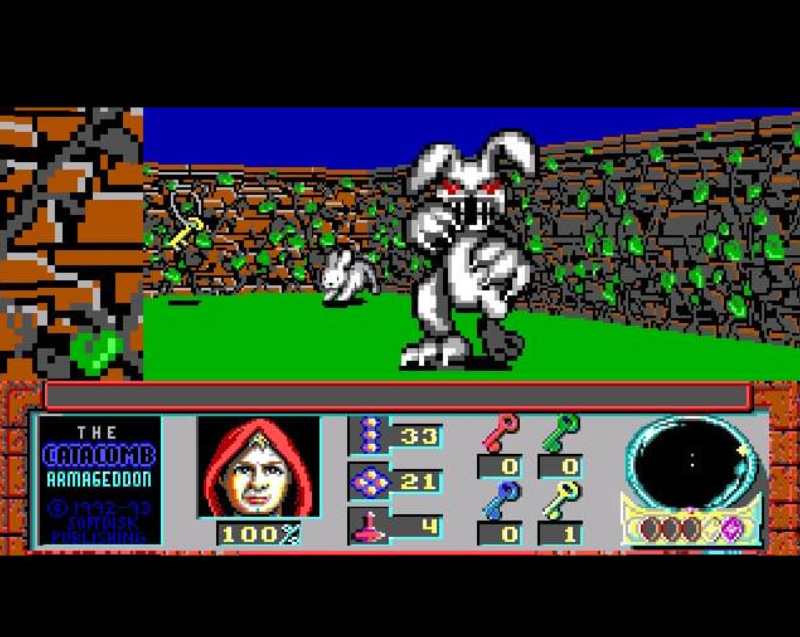

Catacomb 3-D
1991

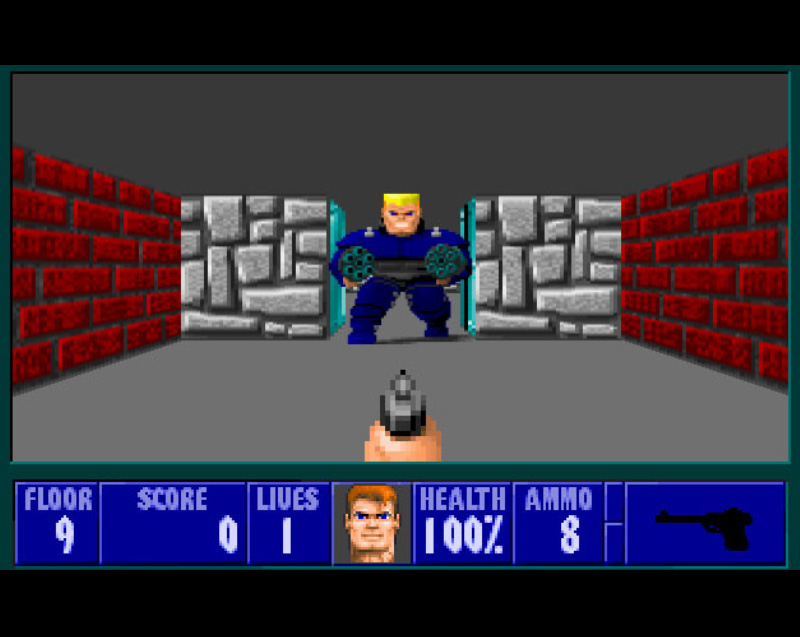

Wolfenstein 3-D
1992

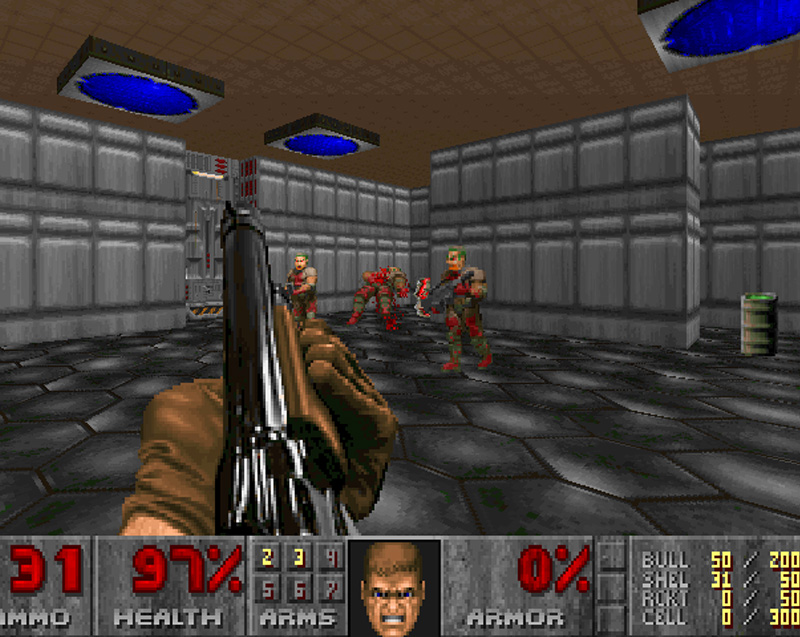

Doom
1993

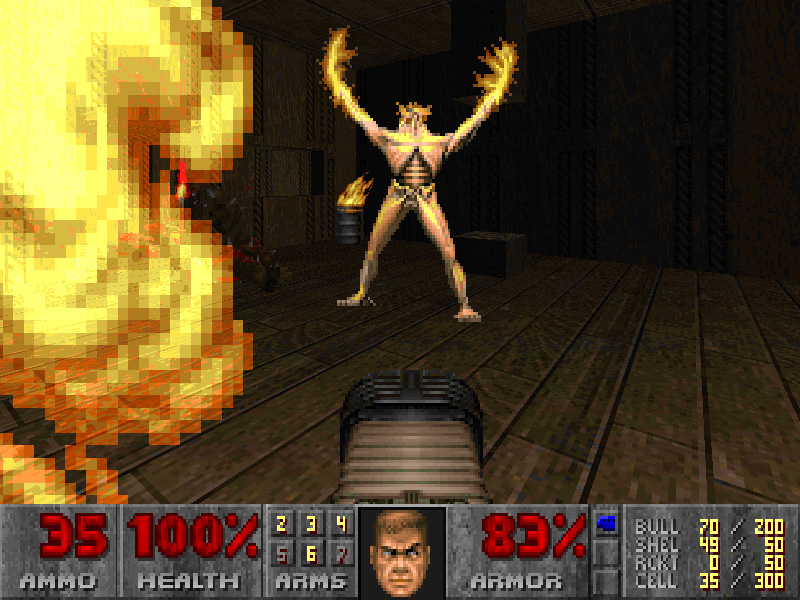

1993: Doom

   1 boolean P_CheckMissileRange (mobj_t* actor){


   2     if (!P_CheckSight(actor, actor->target))


   3     return false; // can’t see the target


   4


   5     if ( actor->flags & MF_JUSTHIT ) {


   6     // just hit -> fight back!


   7       actor->flags &= ~MF_JUSTHIT;


   8       return true;


   9     }


  10


  11     if (actor->reactiontime)


  12     return false; // do not attack yet


  13


  14     if (!actor->info->meleestate)


  15      dist -= 128*FRACUNIT; // no melee


  16


  17     // check for ARCH-VILE


  18     if (actor->type == MT_VILE){


  19       if (dist > 14*64)


  20          return false;  // too far away


  21     }


  22 ...

Source code: link

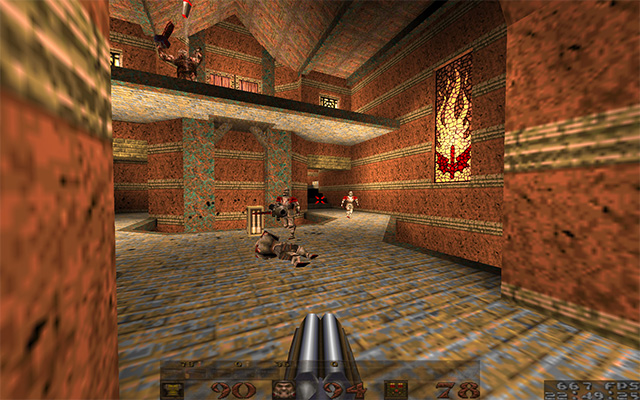

Quake Engine

  • ~id Tech 1
  • released by ID Software in 1996
  • initiated the rise of 3D gaming
  • true 3D real-time rendering, 3D light sources
  • Id Tech 1 Games:
    • Quake, Hexen 2, Silver Wings
  • Other IdTech-based games:
    • Call of Duty
    • Medal of Honor
    • Daikatana
    • Half-Life (forked Source Engine)
  • Successors:
    • id Tech 2, 3, 4, 5, 6, 7 (2020)

Quake source code: link

Quake engine family

Influence of Game Engines

Game Engines Overview

Game Engines Today

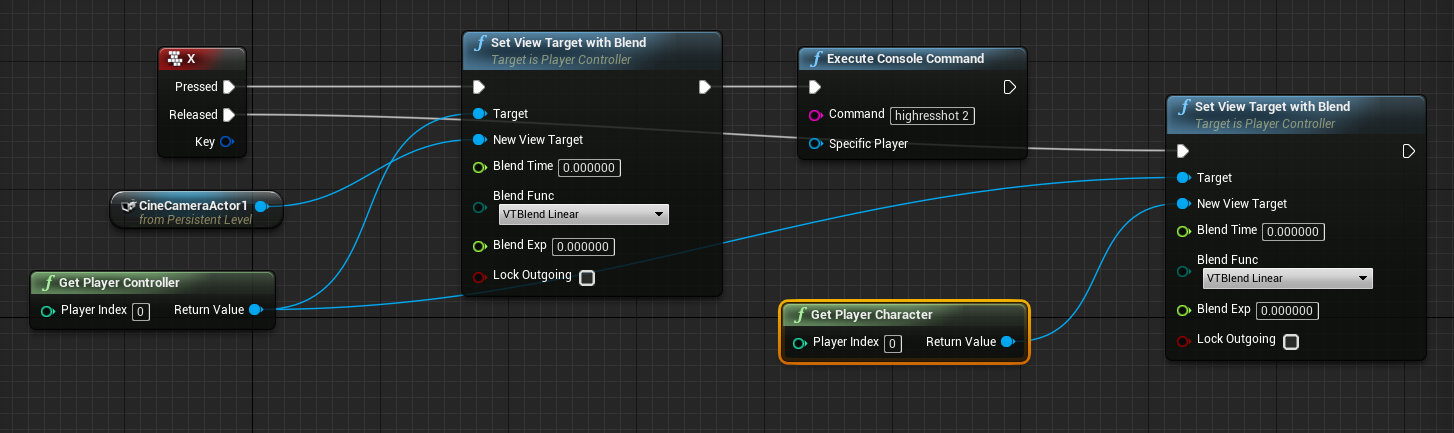

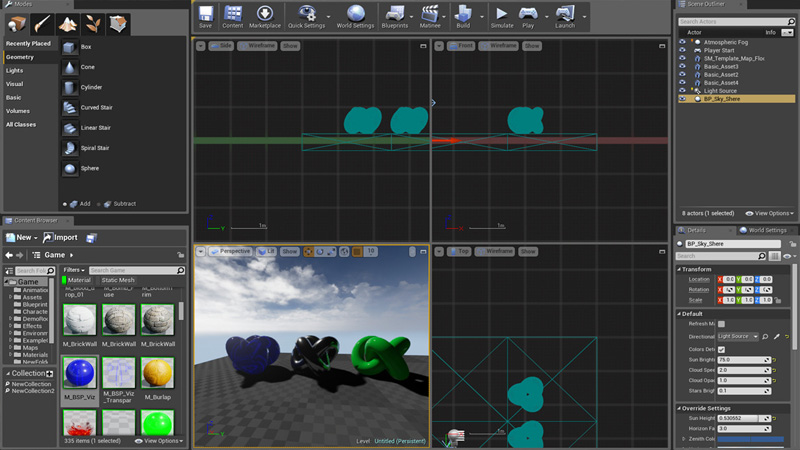

Unreal Engine

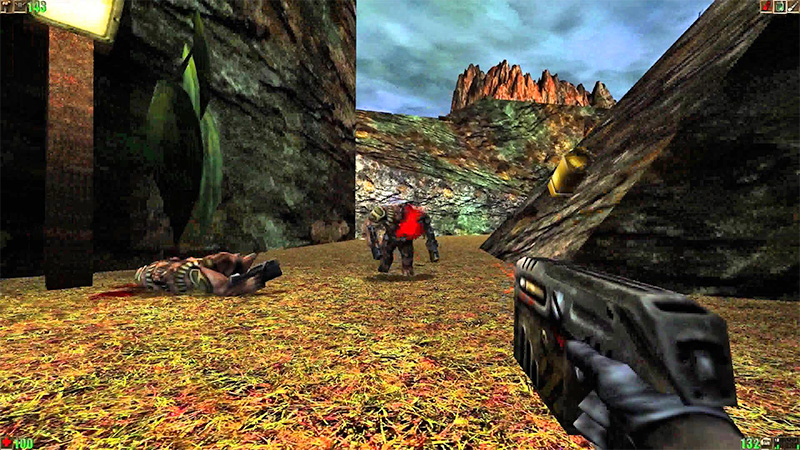

Unreal Engine 1

  • released in 1998 by Epic Games as FPS game engine
  • Unreal - the first game powered by this engine

Unreal Engine 4

  • film-Quality postprocessing
  • VFX & Particle Systems
  • beta Raytracing

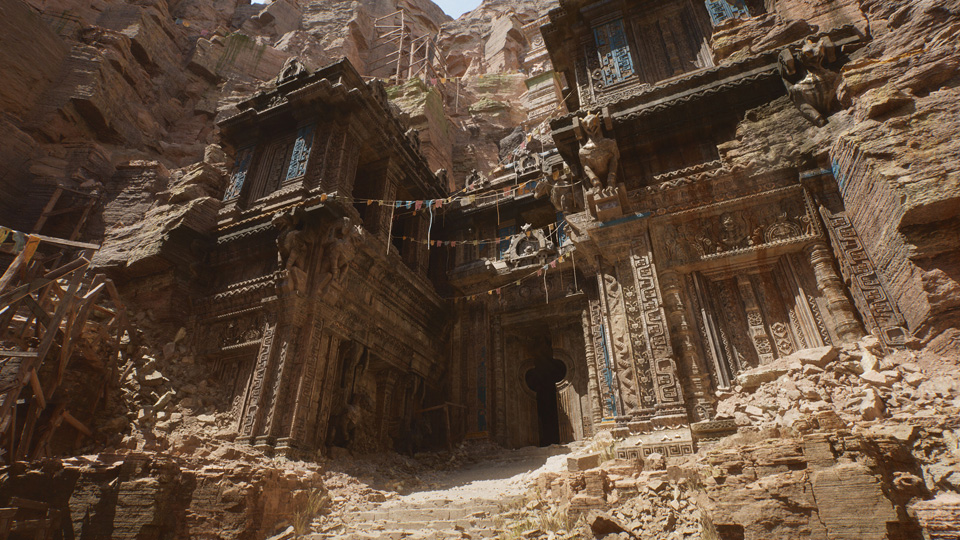

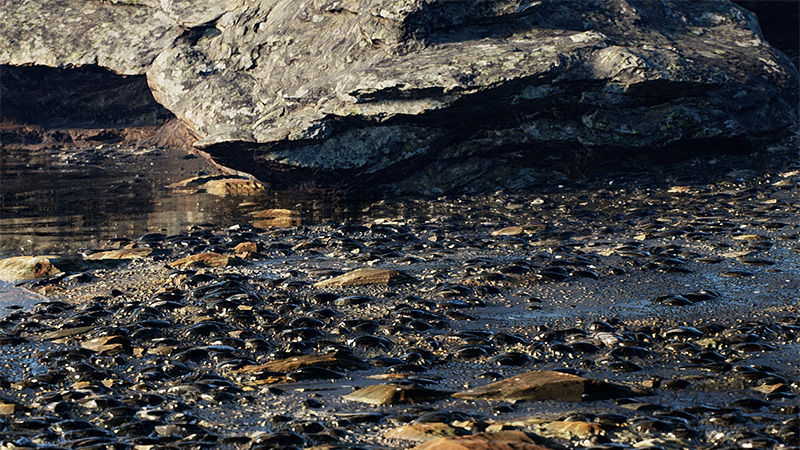

Unreal Engine 5

  • Nanite virtualized geometry
  • Lumen illumination engine
  • source code is available

Unity

  • all-purpose (not only) game engine
  • first announced for MacOS in 2005
  • over 27 platforms supported
  • most common choice for indie developers
  • source code is not available

Unity 2021.1.22 - current version

  • Universal Render Pipeline
  • visual scripting with Bolt engine
  • new networking engine

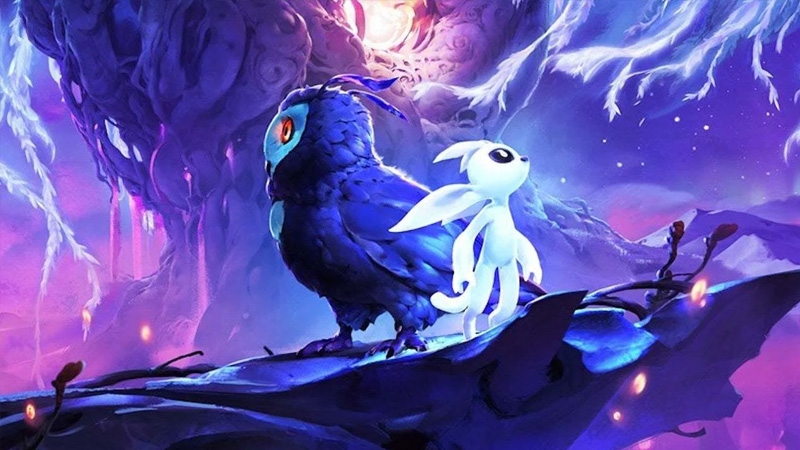

Ori

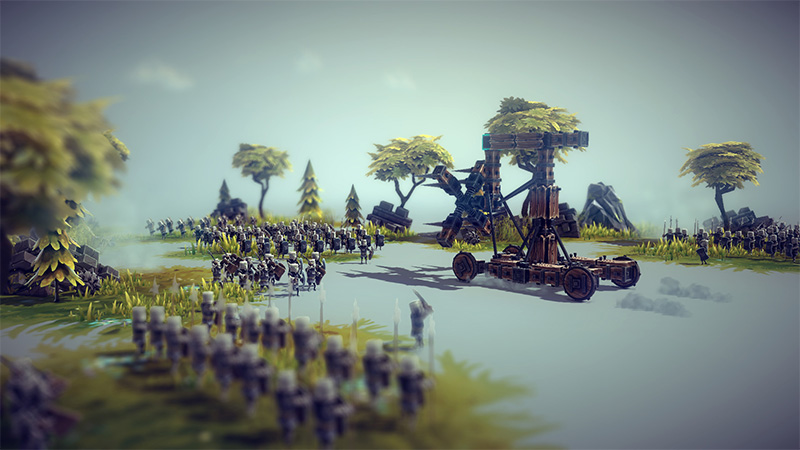

Besiege

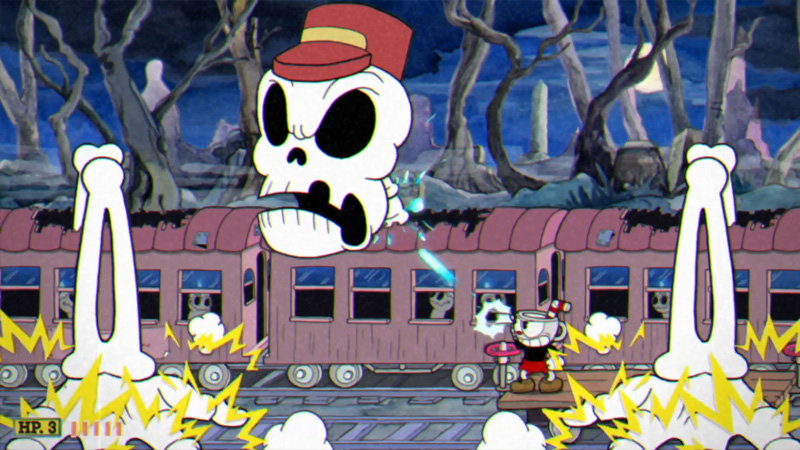

Cuphead

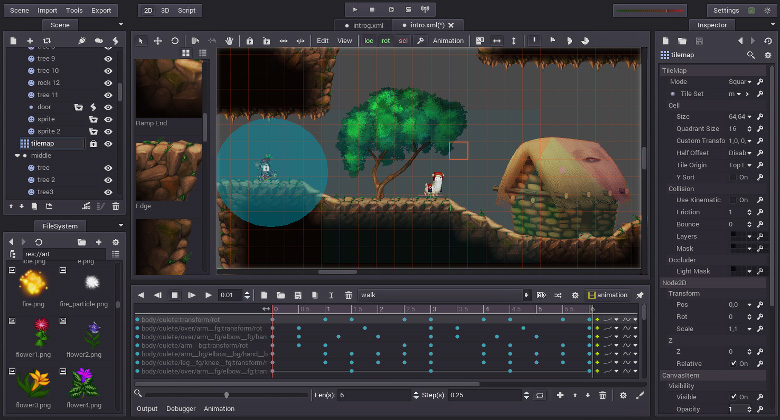

Godot

  • 2D and 3D game engine
  • GDScript scripting language
  • component architecture
  • MIT license, completely free
  • no famous games so far

Which engine do I need?

  • 2D microgames with simple animations can be made solely without engines
  • more complex games can be made in graphics libraries
  • Unity is great for 2D and 3D indie games, but doesn't offer low-level customization
  • Unreal is difficult to master, yet it can be customized in any way
  • for complex games, migration between engines is practically impossible
  • open-source game engines heavily depend on the community and their future is uncertain

Engine Architecture

Game Engine Primary Modules

  • Game Loop - the heartbeat of all games
  • Scene Manager - manages objects and structures them in a scene graph
  • Input Manager - handles inputs (keyboard, mouse, touch, joystick, gamepad,...)
  • Resource Manager - manages assets, controls a cache
  • Memory Manager - memory allocator and deallocator
  • Rigidbody Engine - event-based collision detection
  • Physics Engine - handles behavior of objects based on forces and impulses
  • Rendering Engine - renders the game, takes care of the rendering pipeline
  • Animation Engine - handles animations
  • Scripting Engine - a bridge between the engine and interpreted languages (JS, C#,...)
  • Audio Engine - plays music, clips, sounds, calculates 3D sound
  • AI Engine - abstract engine for AI (state machines, behavioral trees,...)
  • Networking Engine - handles multipeer communication
  • Other modules - GUI framework, Level Editor, Camera, Event System, LOD system,...

Game Loop

Game Loop

  • the most important part of the game engine
  • each turn advances the state of the game
  • usually coordinated with the event loop of the platform/virtual machine
  • optimal time step for rendering: 60 FPS = 16.6 ms per frame
  • audio, input, and physics require more frequent updates
In general, a program spends 90% of its time in 10% of its code. The game loop will be firmly in those 10%.

Simple Game Loop

Game loop with separated rendering

Cooperative game loop

  • synchronization can be provided by delayed invocation
  • first used in Ultima VII (1994)

Update method

Fixed time step

  • each update advances the game by a certain amount of time
  • deterministic and stable
  • the game may slow down

Variable time step

  • each update advances the game based on how much real time has passed since the last frame
  • natural
  • non-deterministic and unstable

Adaptive time step

  • switches between variable and fixed time step based on thresholds
  • deals with long breaks better than the other two
Some old games were tied with the system clock, hence their CPU-sensitivity.

Example: Unity Game Loop

Update Inconsistencies

  • game objects are consistent before and after every update
  • they may get to an inconsistent state during the update - one-frame-off lag
  • possible solutions: bucket update, script execution order (Unity), process priority (Godot)

Object A reads previous state of Object B and Object B reads previous state of Object C

Scene Graph

Scene Graph

Scene Graph

  • essential structure of every interactive application
  • a way of ordering data into a hierarchy
  • represented as an N-Tree or a regular graph
  • implemented as an array, oct-tree, quad-tree, bounding volume hierarchy,...
  • parent nodes affect child nodes (translation, rotation, scale,...)
  • leaves represent atomic units (shapes, vertices, imported meshes)

Scene Manager

  • uses scene graph as a logical hierarchy
  • responsibility: communication, binding to logical components
  • Unity Engine - game objects form a hierarchy
  • Unreal Engine - components form a hierarchy
  • Godot Engine - everyting forms a hierarchy

Example: Scene Hierarchy

Input

Input Manager

  • detects events from input devices
  • polling - compare against the previous state
  • callbacks - handled by an upper SW layer

Devices

  • keyboard, touch sensor, camera, gamepad, Oculus Touch,...
  • one-axis controller - single analog state
  • two-axis controller - mouse and joystick
  • three-axis controller - accelerometer

What to consider

  • which input is active (e.g., pressed key)
  • how long has it been active
  • what state is it in and which component can react to it
  • when an input got active, what input was active before?

Input Events

Atomic events

  • key press
  • key release
  • mouse wheel move

Compound events

  • click
  • fling
  • pinch to zoom
  • double tap

Special events

  • sequences
  • actions

Special Events

Sequence

  • cheats: IDDQD, IDKFA

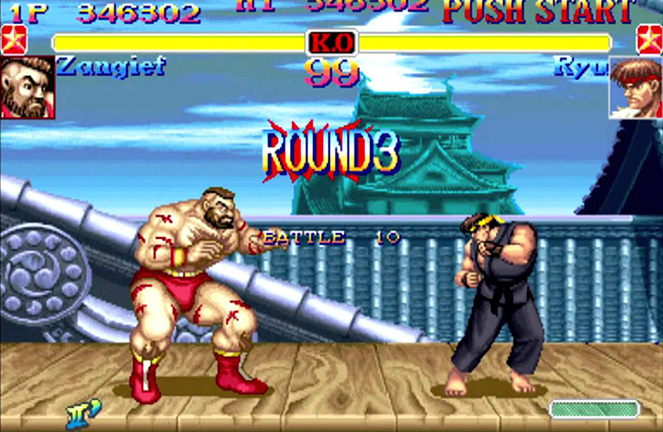

  • chords: combo moves in fighting games

Action

  • a button or a combination of buttons result in an action
  • there must be a button ID <-> action ID mapping

Context-sensitive input

  • several modes: walking, driving, flying

Example: Godot Input Manager

   1 class InputEvent : public Resource {


   2


   3 public:


   4 	static const int DEVICE_ID_TOUCH_MOUSE;


   5 	void set_device(int p_device);


   6 	int get_device() const;


   7


   8 	bool is_action(const StringName &p_action, bool p_exact_match = false) const;


   9 	bool is_action_pressed(const StringName &p_action, bool p_allow_echo = false, bool p_exact_match) const;


  10 	bool is_action_released(const StringName &p_action, bool p_exact_match = false) const;


  11 	float get_action_strength(const StringName &p_action, bool p_exact_match = false) const;


  12 	float get_action_raw_strength(const StringName &p_action, bool p_exact_match = false) const;


  13 	virtual bool is_pressed() const;


  14


  15 	virtual bool is_match(const Ref<InputEvent> &p_event, bool p_exact_match = true) const;


  16


  17 	virtual bool accumulate(const Ref<InputEvent> &p_event) { return false; }


  18 };

Scripting Engine

Scripts

Scripts in games

  • allow rapid prototyping
  • can be reloaded at runtime
  • can separate gameplay and core components
  • can be exposed to the end users for modding

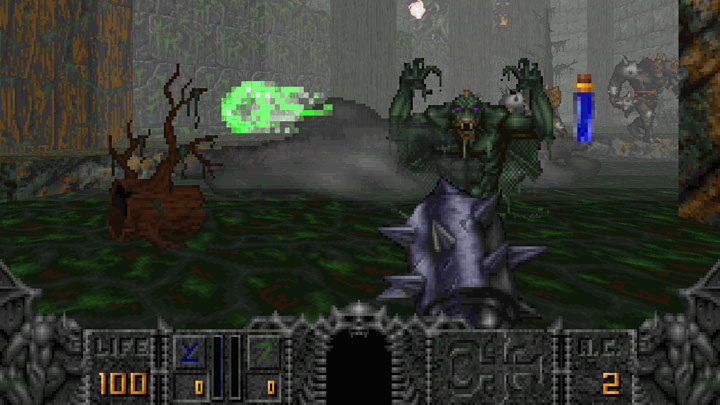

Hexen (1995) - one of the first scripted games

Example: Hexen ACS Script

   1 script 137 (int dir)


   2 {


   3     if(!dir)


   4     {


   5         Floor_LowerByValue(DoorTag, 16, 64)


   6         Ceiling_RaiseByValue(DoorTag, 16, 64)


   7         Delay(120);


   8         Floor_RaiseByValue(DoorTag, 16, 64)


   9         Ceiling_LowerByValue(DoorTag, 16, 64)


  10     }


  11 }

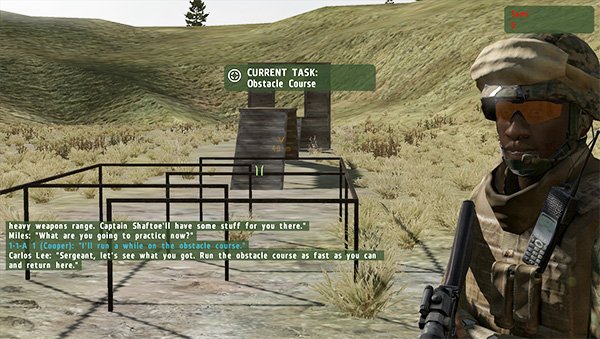

Example: Arma 2 SQS Script

   1 // Creates boards and markers around mission Area


   2 _xPos = position (_this select 0) select 0;


   3 _yPos = position (_this select 0) select 1;


   4


   5 _howBigA = _this select 1;


   6 _howBigB = _this select 2;


   7 _tablesC = _this select 3;


   8 _angle = _this select 4;


   9 _i = 0;


  10


  11 while (_i < 360) do {


  12   _x = (_howBighA * (sin _i));


  13   _y = (_howBigB * (cos _i));


  14   _x_rot = _xPos + _x*(cos _angle) - _y*(sin _angle);


  15   _y_rot = _yPos + _x*(sin _angle) + _y*(cos _angle);


  16   _k = createVehicle ["Danger", [_x_rot, _y_rot, 0], [], 0, "NONE"];


  17   _m = createMarker [format ["Marker" + str _i], [_x_rot, _y_rot, 0]];


  18   format ["Marker" + str _i] setMarkerType "Dot";


  19   _k setDir _i;


  20   format ["Marker" + str _i] setMarkerDir(_i - _angle);


  21   _i = _i + 360/_tablesC;


  22 };

Example: Godot GDScript

   1 func _process(delta):


   2     # Get ball position and pad rectangles


   3     var ball_pos = get_node("ball").get_pos()


   4     var left_rect = Rect2(get_node("left").get_pos() - pad_size*0.5, pad_size)


   5     var right_rect = Rect2(get_node("right").get_pos() - pad_size*0.5, pad_size)


   6


   7     # Integrate new ball position


   8     ball_pos += direction*ball_speed*delta


   9


  10     # Flip, change direction and increase speed when touching pads


  11     if ((left_rect.has_point(ball_pos) and direction.x < 0)


  12     or (right_rect.has_point(ball_pos) and direction.x > 0)):


  13         direction.x = -direction.x


  14         ball_speed *= 1.1


  15         direction.y = randf()*2.0 - 1


  16         direction = direction.normalized()


  17     ...

Game Engine Scripting API

  • the engine needs to communicate with the script - provided by bridging
  • bridge is a performance bottleneck, especially for per-frame calls
  • more scripting languages = more bridges to maintain
  • Marshalling - transforming memory representation of an object between two domains (different programming languages)
  • Semantic gap - descriptive difference of an object in various representations (e.g. relational database vs object-oriented structure)
  • applies to visual representations as well

Example: Atomic Game Engine JS API

   1 // Duktape JS mapping


   2 static void jsb_class_define_FileSystem(JSVM* vm) {


   3   duk_context* ctx = vm->GetJSContext();


   4   js_class_get_constructor(ctx, "Atomic", "FileSystem");


   5   js_class_get_prototype(ctx, "Atomic", "FileSystem");


   6   duk_pop_2(ctx);


   7   js_class_get_prototype(ctx, "Atomic", "FileSystem");


   8   duk_push_c_function(ctx, jsb_class_FileSystem_SetCurrentDir, 1);


   9   duk_put_prop_string(ctx, -2, "setCurrentDir");


  10   duk_push_c_function(ctx, jsb_class_FileSystem_CreateDir, 1);


  11   duk_put_prop_string(ctx, -2, "createDir");


  12 ...


  13 }


  14


  15 // CreateDir method


  16 static int jsb_class_FileSystem_CreateDir(duk_context* ctx) {


  17   String __arg0 = duk_to_string(ctx, 0);


  18   duk_push_this(ctx);


  19   FileSystem* native = js_to_class_instance<FileSystem>(ctx, -1, 0);


  20   bool retValue = native->CreateDir(__arg0);


  21   duk_push_boolean(ctx, retValue ? 1 : 0);


  22   return 1;


  23 }

Example: Atomic Game Engine C# API

  • mapping from C++ to C# is easy
   1 ATOMIC_EXPORT_API bool csb_Atomic_FileSystem_SetCurrentDir_4667(FileSystem* self, const char* pathName)


   2 {


   3    return self->SetCurrentDir(pathName ? String(pathName) : String::EMPTY);


   4 }


   5


   6


   7 ATOMIC_EXPORT_API bool csb_Atomic_FileSystem_CreateDir_4668(FileSystem* self, const char* pathName)


   8 {


   9    return self->CreateDir(pathName ? String(pathName) : String::EMPTY);


  10 }


  11


  12


  13 ATOMIC_EXPORT_API void csb_Atomic_FileSystem_SetExecuteConsoleCommands_4669(FileSystem* self, bool enable)


  14 {


  15    self->SetExecuteConsoleCommands(enable);


  16 }

Lecture Summary

  • I know a thing or two about IDTech engine
  • I know the primary modules of game engines
  • I know how game loop works
  • I know what inconsistencies may occur during an update
  • I know what scene graph is and what elements it contains
  • I know something about scripting engines

Goodbye Quote

If You Become Light Headed From Thirst, Feel Free To Pass Out!Portal
