Patterns

FIT CTU

Adam Vesecký

NI-APH

Lecture 5

APHGames.io

Patterns

Literature

Nystrom, Robert. 2014. Game Programming Patterns

Nystrom, Robert. Game Programming Patterns

If game programmers ever cracked open Design Patterns at all, never got past Singleton. Gang of Four’s is inapplicable to games in its original version.Robert Nystrom

Design patterns

Design patterns in applications

Design patterns in games

Action Patterns

Data-Passing Components

~visual programming
thinks solely in terms of sending streams of data from one object to another
every component has a set of ports to which a data stream can be connected
requires a visual editor
good for dynamic data processing (shaders, animations, AI decisions)

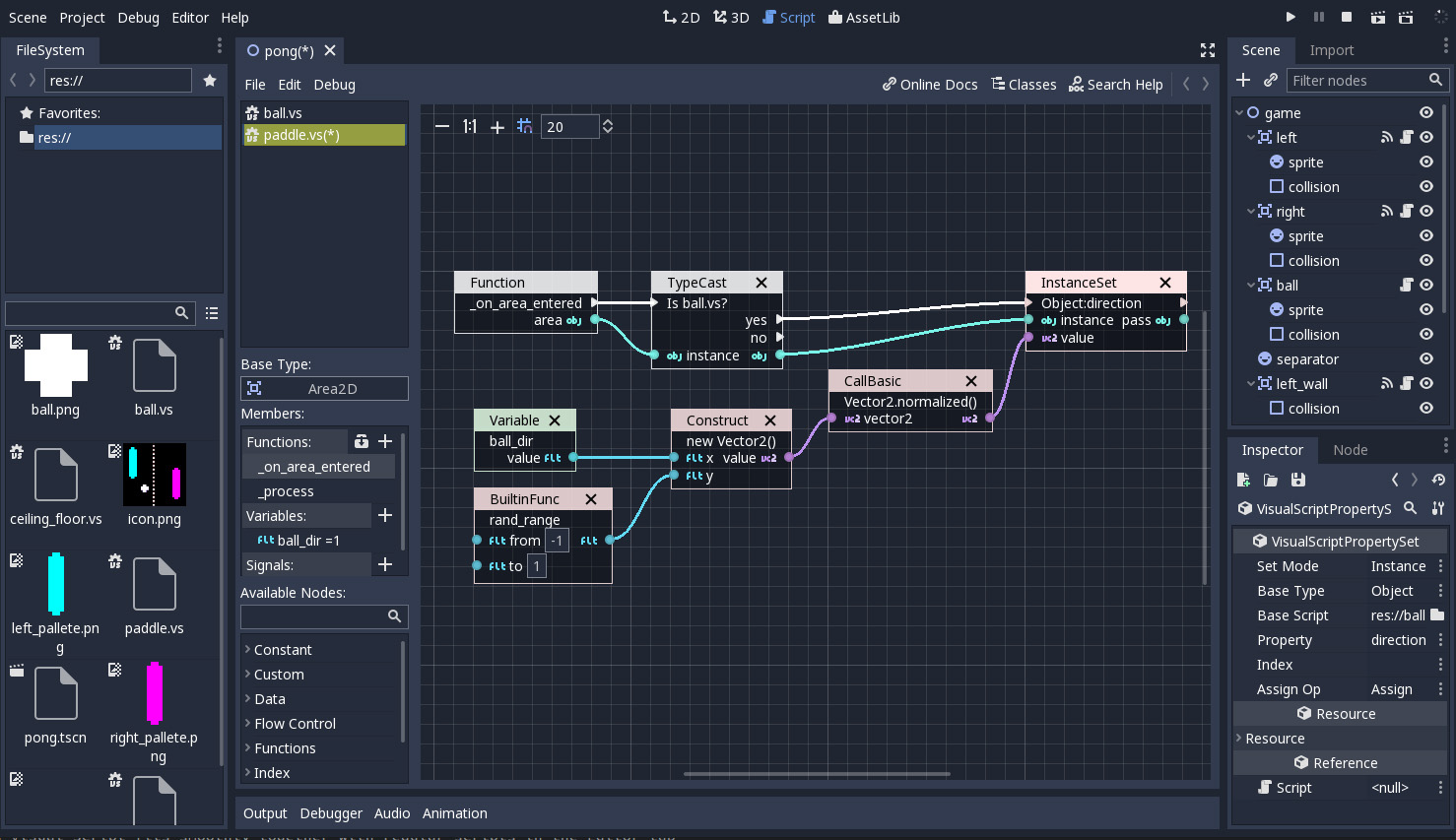

Example: Godot Editor

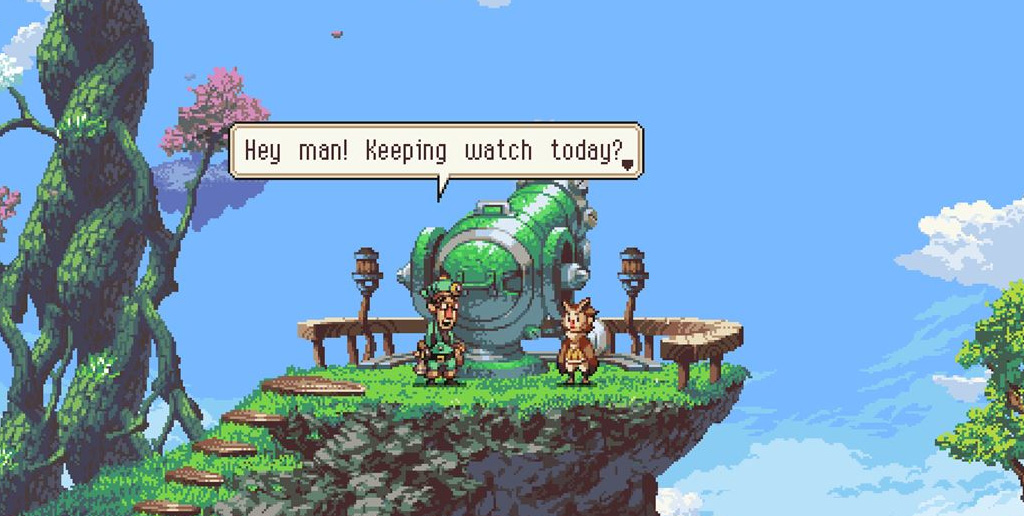

Event System

games are event-based

What we need

built-in event emitter
a good way of how to define events for levels (declarative and imperative)
structures for evaluation of conditional events (e.g. history of recent events)
a good visualisation, if the events are branching

Avoid placing conditions in declarative languages

Processes and Actions

Process - something that requires more than one frame to finish
- basically everything that involves animations and accumulated player input

Example: Pacman actions

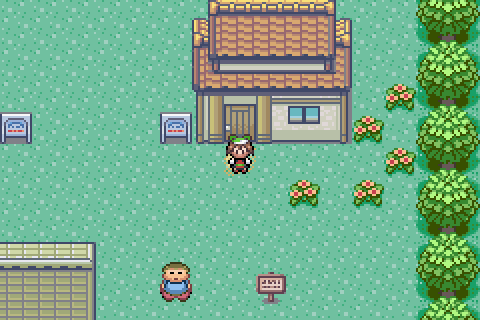

Chain

Chain - a set of commands, events and processes that need to be evaluated in a given order
Implementation
- callbacks - basically in every language, very bad robustness
- listener chaining - any language with closures (Java, JavaScript, C#,..)
- iterator blocks - C#
- async actions and generators - JavaScript
- coroutines - Kotlin, Ruby, Lua,...

Chain Example (C#)

   1
   2  public async Task EnterDoorAction(Door door) {
   3  	this.Context.Player.BlockInput();
   4  	await new DoorAnimation(door).Open();
   5  	await new WalkAnimation(this.Context.Player).Walk(this.Context.Player.direction);
   6  	this.Context.Player.Hide(); // hide the sprite once it approaches the house
   7  	await new DoorAnimation(door).Close();
   8  	await Delay(500); // wait for 500 ms
   9  }
  10
  11  .......
  12
  13  public async Task OnPlayerDoorApproached(Door door) {
  14  	await new EnterDoorAction(door);
  15  	await new SceneLoader(door.TargetScene);
  16  }

Chain Example (ECSLite library)

   1  this.owner.addComponent(new ChainComponent()
   2      .call(() => player.blockInput())
   3      .waitFor(new DoorAnimComponent(DoorActions.OPEN))
   4      .waitFor(new WalkAnim(player, direction))
   5      .call(() => player.hide())
   6      .waitFor(new DoorAnimComponent(DoorActions.CLOSE))
   7      .waitTime(500));

Delay

an action/event that should happen after a given amount of time
can be implemented with by same means as the chain
always prefer an approach the engine recommends over features built into the scripting language
- e.g. setTimeout() in JavaScript is invoked from within the event loop, not during an update loop

example: Unity Delayed Invocation

   1  IEnumerator Spawn () {
   2          // Create a random wait time before the prop is instantiated.
   3          float waitTime = Random.Range(minTimeBetweenSpawns, maxTimeBetweenSpawns);
   4          // Wait for the designated period.
   5          yield return new WaitForSeconds(waitTime);
   6
   7          // Instantiate the prop at the desired position.
   8          Rigidbody2D propInstance = Instantiate(backgroundProp, spawnPos, Quaternion.identity) as Rigidbody2D;
   9          // Restart the coroutine to spawn another prop.
  10          StartCoroutine(Spawn());
  11  }

Delay Example (ECSLite library)

   1  // wait for 2 seconds and load another scene
   2  this.sendMessage(Messages.FREEZE);
   3  this.scene.callWithDelay(2000, () => {
   4  	Factory.loadScene(Scenes.MAIN_MENU);
   5  });

Delay Example (KKD)

   1  void Item::SpawnDeferred(const std::function<void(ItemEntity&)>;& OnSpawned, const QuatT& transform) {
   2  	ExecuteDeferred([this, OnSpawned, transform]() {
   3  		auto* spawnedItem = entitySystem->SpawnUnsafeItem(transform);
   4  		if (spawnedItem) {
   5  			OnSpawned(*spawnedItem);
   6  		}
   7  	});
   8  }
   9  //=========================================================================
  10  Deferrable::~Deferrable() {
  11  	GetDeferredSystem().CancelAllDeferred(*this);
  12  }
  13
  14  //=========================================================================
  15  template <class Fn>
  16  bool Deferrable::ExecuteDeferred(Fn&& fn) const {
  17  	const auto ret = GetDeferredSystem().ExecuteDeferred(std::forward<Fn>(fn), *this);
  18  	return ret;
  19  }

Separation of concerns

common misuse is to handle complex events in one place
solution: send events and delegate the processing to handlers

in one place

   1  if(asteroid.position.distance(rocket.position) <= MIN_PROXIMITY) { // detect proximity
   2    rocket.runAnimation(ANIM_EXPLOSION); // react instantly and handle everything
   3    asteroid.runAnimation(ANIM_EXPLOSION);
   4    playSound(SOUND_EXPLOSION);
   5    asteroid.destroy();
   6    rocket.destroy();
   7  }

separated

   1  // collision-system.ts
   2  let collisions = this.collisionSystem.checkProximity(allGameObjects);
   3  collisions.forEach(colliding => this.sendEvent(COLLISION_TRIGGERED, colliding));
   4  // rocket-handler.ts
   5  onCollisionTriggered(colliding) {
   6    this.destroy();
   7    this.sendEvent(ROCKET_DESTROYED);
   8  }
   9  // sound-component.ts
  10  onGameObjectDestroyed() {
  11    this.playSound(SOUND_EXPLOSION);
  12  }

Example: Quake death script

   1  void() PlayerDie = {
   2  	DropBackpack();
   3  	self.weaponmodel="";
   4  	self.view_ofs = '0 0 -8';
   5  	self.deadflag = DEAD_DYING;
   6  	self.solid = SOLID_NOT;
   7  	self.flags = self.flags - (self.flags & FL_ONGROUND);
   8  	self.movetype = MOVETYPE_TOSS;
   9
  10  	if (self.velocity_z < 10)
  11  		self.velocity_z = self.velocity_z + random()*300;
  12
  13  	DeathSound();
  14
  15  	if (self.weapon == IT_AXE) {
  16  		player_die_ax1 ();
  17  		return;
  18  	}
  19
  20  	i = 1 + floor(random()*6);
  21  	if (i == 1)
  22  		player_diea1();
  23  	else if (i == 2)
  24  		player_dieb1();
  25  	else player_diec1();
  26  };

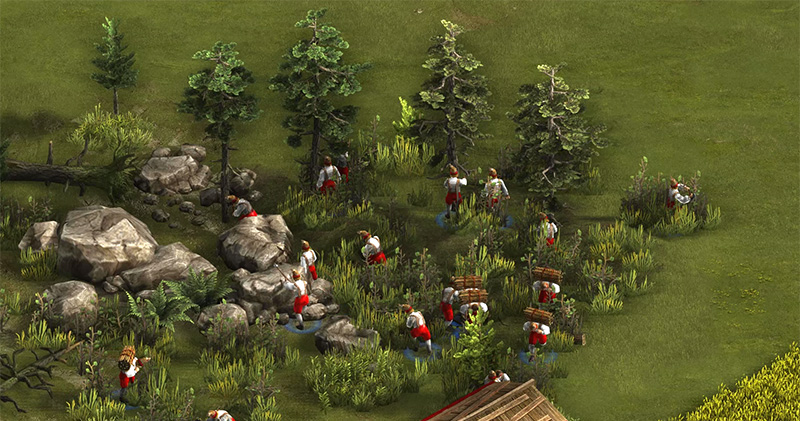

Responsibility ownership

determines which component should be responsible for given scope/action/decision
there is no bulletproof recipe, yet it should be unified within the game
if the scope affects only one entity, it should be a component attached to that entity
- example: a worker that goes to the forest for some wood
if the scope affects more entities, it's often a component/system attached to a parent element up the scene graph (e.g. the root object)
- example: battle formation controller, duel controller (who wins, who loses)

Optimizing Patterns

Data storing

Randomly

Sequentially

Flyweight

an object keeps shared data to support large number of fine-grained objects
e.g. instanced rendering, geometry hashing, particle systems
here we move a position and a tile index (Sprite) into an array

Dirty Flag

marks changed objects that need to be recalculated
can be applied to various attributes (animation, physics, transformation)
you have to make sure to set the flag every time the state changes

Cleaning

When the result is needed
- avoids doing recalculation if the result is never used
- game can freeze for expensive calculations
At well-defined checkpoints
- less impact on user experience
- you never know, when it happens
On the background
- you can do more redundant work
- danger of race-condition

Example: Godot Cache

   1  void AnimationCache::_clear_cache() {
   2  	while (connected_nodes.size()) {
   3  		connected_nodes.front()->get()
   4  			->disconnect("tree_exiting", callable_mp(this, &AnimationCache::_node_exit_tree));
   5  		connected_nodes.erase(connected_nodes.front());
   6  	}
   7  	path_cache.clear();
   8  	cache_valid = false;
   9    	cache_dirty = true;
  10  }
  11
  12  void AnimationCache::_update_cache() {
  13  	cache_valid = false;
  14
  15  	for (int i = 0; i < animation->get_track_count(); i++) {
  16  		// ... 100 lines of code
  17  	}
  18
  19    	cache_dirty = false;
  20  	cache_valid = true;
  21  }
  22

Structural Patterns

Two-stage initialization

avoids passing everything through the constructor
constructor creates an object, init method initializes it
objects can be initialized several times
objects can be allocated in-advance in a pool

   1  class Brainbot extends Unit {
   2
   3    private damage: number;
   4    private currentWeapon: WeaponType;
   5
   6    constructor() {
   7      super(UnitType.BRAIN_BOT);
   8    }
   9
  10    init(damage: number, currentWeapons: WeaponType) {
  11      this.damage = damage;
  12      this.currentWeapon = currentWeapons;
  13    }
  14  }

Context

Context (Blackboard)

shared data structure for a scope (or the whole game)
may contain both states and properties
provides global or scoped data (e.g. player score, money, number of lives)
often used in behavioral trees

   1  public void OnTriggerEvent(Event evt, GameContext ctx) {
   2
   3  	if(evt.Key == "LIFE_LOST") {
   4  		ctx.Inventory.clear();
   5  		ctx.Boosts.clear();
   6  		ctx.Player.Lives--; // access the context
   7  		if(ctx.Player.Lives <= 0) {
   8  			this.FireEvent("GAME_OVER");
   9  		}
  10  	}
  11  }

Null Component

in some cases, components need to communicate directly (instead of sending messages)
if we want to avoid using null-checks, we can introduce a dummy component that doesn't do anything

example: instant animations for debugging purposes

   1  class NullAnimComponent extends Component {
   2
   3  	constructor() {
   4  		super('AnimComponent')
   5  	}
   6
   7  	playAnimation(id: string) {
   8  		// immediately end
   9  		this.sendMessage('ANIMATION_ENDED', { id });
  10  	}
  11  }

Selector

a function that returns a value
centralizes the knowledge of how to find an entity/attribute/component
can be used by components to access dynamic data
can form a hierarchy from other selectors

   1  const getPlayer(scene: Scene) => scene.findObjectByName('player');
   2
   3  const getAllUnits(scene: Scene) => scene.findObjectsByTag('unit_basic');
   4
   5  const getAllUnitsWithinRadius(scene: Scene, pos: Vector, radius: number) => {
   6  	return getAllUnits(scene).filter(unit => unit.pos.distance(pos) <= radius);
   7  }
   8
   9  const getAllExits(scene: Scene) => {
  10  	const doors = scene.findObjectsByTag('door');
  11  	return doors.filter(door => !door.locked);
  12  }

State Patterns

Mutability

immutable state is a luxury only simple games can afford
we should assume that most structures are mutable
selectors can help us access properties that are deep in the hierarchy
dirty flag can help us find out if an entity has changed during the update
chain can help us centralize complex modifications and handle side effects
messages can help us discover if any important structure has changed

Flag

bit array that stores binary properties of game objects
may be used for queries (e.g. find all MOVABLE objects)
similar to a state machine but the use-case is different
if we maintain all flags within one single structure, we can search very fast

Example: Flag Table

Numeric state

the most basic state of an entity
allows us to implement a simple state machine

   1  // stateless, the creature will jump each frame
   2  updateCreature() {
   3    if(eventSystem.isPressed(KeyCode.UP)) {
   4      this.creature.jump();
   5    }
   6  }
   7
   8  // introduction of a state
   9  updateCreature() {
  10    if(eventSystem.isPressed(KeyCode.UP) && this.creature.state !== STATE_JUMPING) {
  11      this.creature.changeState(STATE_JUMPING);
  12      this.creature.jump();
  13    }
  14  }

Creational Patterns

Builder

a template that keeps attributes from which it can build new objects
each method returns back the builder itself, so it can be chained

   1  class Builder {
   2    private _position: Vector;
   3    private _scale: Vector;
   4
   5    position(pos: Vector) {
   6      this.position = pos;
   7      return this;
   8    }
   9
  10    scale(scale: Vector) {
  11      this.scale = scale;
  12      return this;
  13    }
  14
  15    build() {
  16      return new GameObject(this._position, this._scale);
  17    }
  18  }
  19
  20  new Builder().position(new Vector(12, 54)).scale(new Vector(2, 1)).build();

Builder Example (ECSLite library)

   1  new ECS.Builder(scene)
   2  	.localPos(this.engine.app.screen.width / 2, this.engine.app.screen.height / 2)
   3  	.anchor(0.5)
   4  	.withParent(scene.stage)
   5  	.withComponent(
   6  		new ECS.FuncComponent('rotation')
   7  		.doOnUpdate((cmp, delta, absolute) => cmp.owner.rotation += 0.001 * delta))
   8  	.asText('Hello World', new PIXI.TextStyle({ fill: '#FF0000', fontSize: 80}))
   9  	.build();

Prototype

Builder builds new objects from scratch, Prototype creates new objects by copying their attributes
in some implementations, the prototype is linked to its objects - if we change the prototype, it will affect all derived entities

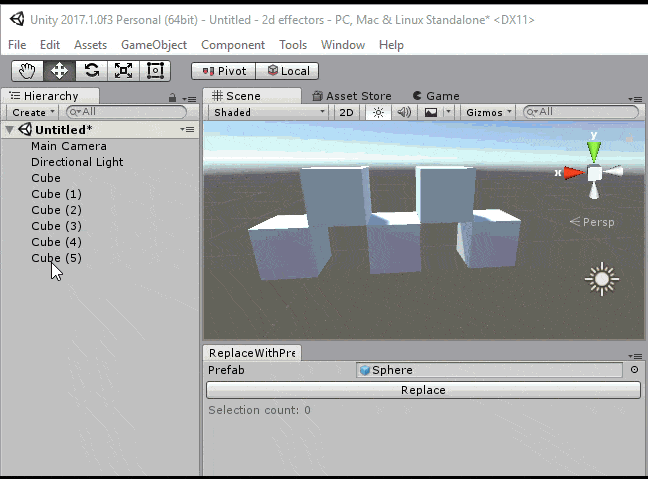

e.g. templates in Godot, linked prefabs in Unity and Unreal engine

Transmuter

modifies a state and behavior of an object
useful when the change is not trivial
we can move the modification process from components to separate functions

   1  const superBallTransmuter = (entity: GameObject) => {
   2      entity.removeComponent<BallBehavior>();
   3      entity.addComponent(new SuperBallBehavior());
   4      entity.state.speed = SUPER_BALL_SPEED;
   5      entity.state.size = SUPER_BALL_SIZE;
   6      return entity;
   7  }

Factory

Builder assembles an object, Factory manages the assembling
Factory creates an object according to the parameters but with respect to the context

   1  class UnitFactory {
   2
   3    private pikemanBuilder: Builder; // preconfigured to build pikemans
   4    private musketeerBuilder: Builder; // preconfigured to build musketeers
   5    private archerBuilder: Builder; // preconfigured to build archers
   6
   7    public spawnPikeman(position: Vector, faction: FactionType): GameObject {
   8      return this.pikeman.position(position).faction(faction).build();
   9    }
  10
  11    public spawnMusketeer(position: Vector, faction: FactionType): GameObject {
  12      return this.musketeerBuilder.position(position).faction(faction).build();
  13    }
  14
  15    public spawnArcher(position: Vector, faction: FactionType): GameObject {
  16      return this.archerBuilder.position(position).faction(faction).build();
  17    }
  18  }

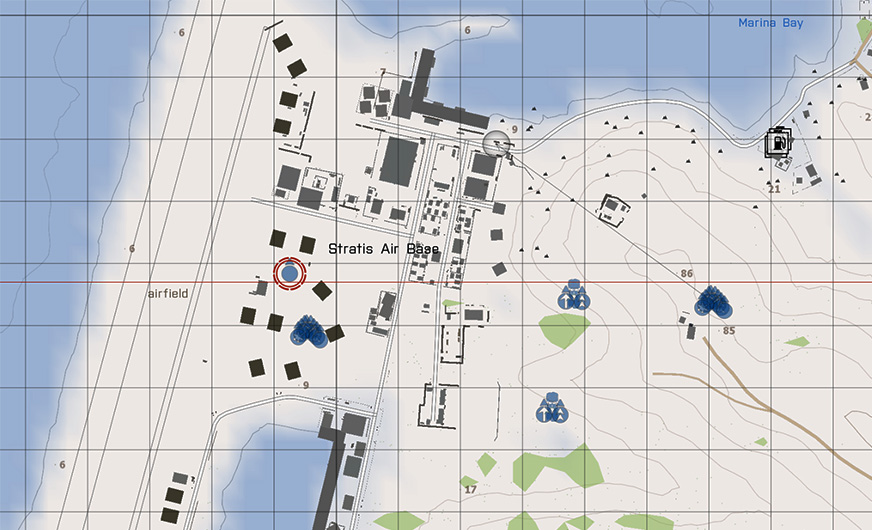

Simulation Patterns

Sandbox

full simulation takes place within a space close to the player (influence sphere)
simulation in an area further away is either omitted or simplified
often used in racing games and open-world games with persistent objects
can be implemented as a separate branch of the scene - the same objects are used, but certain components (rigidbody, animator,...) are disabled

Replay

allows to reproduce any state of a game at any time
all game entities must have a reproducible behavior (similar to multiplayer facility)
Solution a)
- store all input events from the player and re-play them in the same order
- used in Doom
- not robust, may break on other platforms
Solution b)
- reversible counterpart for each function that modifies the game state
- too complicated, random access will be difficult
Solution c)
- snapshot the game state every frame (or by keyframes and interpolate)
- used in Braid

Example: Braid

40MB for ~60 minutes of replay
saved 100% state (compressed, removed looping particle emitters)
arbitrary seek required to expand 2 frames (full snapshot and delta)
audio engine had its own timer with 10% safe margin

Example: Doom Demo File

Lump file (*.LMP)
fixed time-loop at a rate of 35 FPS (handled by tic command)
the file contains only keyboard inputs at each tick
the game plays the demo, injecting input commands from the demo file
13B header + 4B data for each tick ~140B/s

Design practices: Summary

use Builder to build new objects
use Factory to manage construction of new objects
use Prototype to clone already existing objects
use Chain to chain up complex actions/processes
use Selectors to access attributes that are deep in the scene hierarchy
use Flag to collect a set of features of an object
use Numeric state for a simple finite state machine
use Transmuter to change a composition of components upon an object
use Context to store global game data

Lecture Summary

I know something about responsibility ownership in component architecture
I know what process is
I know flyweight pattern
I know selector pattern
I know flag pattern
I know numeric state pattern
I know builder pattern
I know prototype pattern
I know factory pattern

Goodbye Quote

What is better? To be born good or to overcome your evil nature through great effort?Paarthurnax, Skyrim

1
2	public async Task EnterDoorAction(Door door) {
3	this.Context.Player.BlockInput();
4	await new DoorAnimation(door).Open();
5	await new WalkAnimation(this.Context.Player).Walk(this.Context.Player.direction);
6	this.Context.Player.Hide(); // hide the sprite once it approaches the house
7	await new DoorAnimation(door).Close();
8	await Delay(500); // wait for 500 ms
9	}
10
11	.......
12
13	public async Task OnPlayerDoorApproached(Door door) {
14	await new EnterDoorAction(door);
15	await new SceneLoader(door.TargetScene);
16	}

1	this.owner.addComponent(new ChainComponent()
2	.call(() => player.blockInput())
3	.waitFor(new DoorAnimComponent(DoorActions.OPEN))
4	.waitFor(new WalkAnim(player, direction))
5	.call(() => player.hide())
6	.waitFor(new DoorAnimComponent(DoorActions.CLOSE))
7	.waitTime(500));

1	IEnumerator Spawn () {
2	// Create a random wait time before the prop is instantiated.
3	float waitTime = Random.Range(minTimeBetweenSpawns, maxTimeBetweenSpawns);
4	// Wait for the designated period.
5	yield return new WaitForSeconds(waitTime);
6
7	// Instantiate the prop at the desired position.
8	Rigidbody2D propInstance = Instantiate(backgroundProp, spawnPos, Quaternion.identity) as Rigidbody2D;
9	// Restart the coroutine to spawn another prop.
10	StartCoroutine(Spawn());
11	}

1	// wait for 2 seconds and load another scene
2	this.sendMessage(Messages.FREEZE);
3	this.scene.callWithDelay(2000, () => {
4	Factory.loadScene(Scenes.MAIN_MENU);
5	});

1	void Item::SpawnDeferred(const std::function<void(ItemEntity&)>;& OnSpawned, const QuatT& transform) {
2	ExecuteDeferred([this, OnSpawned, transform]() {
3	auto* spawnedItem = entitySystem->SpawnUnsafeItem(transform);
4	if (spawnedItem) {
5	OnSpawned(*spawnedItem);
6	}
7	});
8	}
9	//=========================================================================
10	Deferrable::~Deferrable() {
11	GetDeferredSystem().CancelAllDeferred(*this);
12	}
13
14	//=========================================================================
15	template <class Fn>
16	bool Deferrable::ExecuteDeferred(Fn&& fn) const {
17	const auto ret = GetDeferredSystem().ExecuteDeferred(std::forward<Fn>(fn), *this);
18	return ret;
19	}

1	if(asteroid.position.distance(rocket.position) <= MIN_PROXIMITY) { // detect proximity
2	rocket.runAnimation(ANIM_EXPLOSION); // react instantly and handle everything
3	asteroid.runAnimation(ANIM_EXPLOSION);
4	playSound(SOUND_EXPLOSION);
5	asteroid.destroy();
6	rocket.destroy();
7	}

1	// collision-system.ts
2	let collisions = this.collisionSystem.checkProximity(allGameObjects);
3	collisions.forEach(colliding => this.sendEvent(COLLISION_TRIGGERED, colliding));
4	// rocket-handler.ts
5	onCollisionTriggered(colliding) {
6	this.destroy();
7	this.sendEvent(ROCKET_DESTROYED);
8	}
9	// sound-component.ts
10	onGameObjectDestroyed() {
11	this.playSound(SOUND_EXPLOSION);
12	}

1	void() PlayerDie = {
2	DropBackpack();
3	self.weaponmodel="";
4	self.view_ofs = '0 0 -8';
5	self.deadflag = DEAD_DYING;
6	self.solid = SOLID_NOT;
7	self.flags = self.flags - (self.flags & FL_ONGROUND);
8	self.movetype = MOVETYPE_TOSS;
9
10	if (self.velocity_z < 10)
11	self.velocity_z = self.velocity_z + random()*300;
12
13	DeathSound();
14
15	if (self.weapon == IT_AXE) {
16	player_die_ax1 ();
17	return;
18	}
19
20	i = 1 + floor(random()*6);
21	if (i == 1)
22	player_diea1();
23	else if (i == 2)
24	player_dieb1();
25	else player_diec1();
26	};

1	void AnimationCache::_clear_cache() {
2	while (connected_nodes.size()) {
3	connected_nodes.front()->get()
4	->disconnect("tree_exiting", callable_mp(this, &AnimationCache::_node_exit_tree));
5	connected_nodes.erase(connected_nodes.front());
6	}
7	path_cache.clear();
8	cache_valid = false;
9	cache_dirty = true;
10	}
11
12	void AnimationCache::_update_cache() {
13	cache_valid = false;
14
15	for (int i = 0; i < animation->get_track_count(); i++) {
16	// ... 100 lines of code
17	}
18
19	cache_dirty = false;
20	cache_valid = true;
21	}
22

1	class Brainbot extends Unit {
2
3	private damage: number;
4	private currentWeapon: WeaponType;
5
6	constructor() {
7	super(UnitType.BRAIN_BOT);
8	}
9
10	init(damage: number, currentWeapons: WeaponType) {
11	this.damage = damage;
12	this.currentWeapon = currentWeapons;
13	}
14	}

1	public void OnTriggerEvent(Event evt, GameContext ctx) {
2
3	if(evt.Key == "LIFE_LOST") {
4	ctx.Inventory.clear();
5	ctx.Boosts.clear();
6	ctx.Player.Lives--; // access the context
7	if(ctx.Player.Lives <= 0) {
8	this.FireEvent("GAME_OVER");
9	}
10	}
11	}

1	class NullAnimComponent extends Component {
2
3	constructor() {
4	super('AnimComponent')
5	}
6
7	playAnimation(id: string) {
8	// immediately end
9	this.sendMessage('ANIMATION_ENDED', { id });
10	}
11	}

1	const getPlayer(scene: Scene) => scene.findObjectByName('player');
2
3	const getAllUnits(scene: Scene) => scene.findObjectsByTag('unit_basic');
4
5	const getAllUnitsWithinRadius(scene: Scene, pos: Vector, radius: number) => {
6	return getAllUnits(scene).filter(unit => unit.pos.distance(pos) <= radius);
7	}
8
9	const getAllExits(scene: Scene) => {
10	const doors = scene.findObjectsByTag('door');
11	return doors.filter(door => !door.locked);
12	}

1	// stateless, the creature will jump each frame
2	updateCreature() {
3	if(eventSystem.isPressed(KeyCode.UP)) {
4	this.creature.jump();
5	}
6	}
7
8	// introduction of a state
9	updateCreature() {
10	if(eventSystem.isPressed(KeyCode.UP) && this.creature.state !== STATE_JUMPING) {
11	this.creature.changeState(STATE_JUMPING);
12	this.creature.jump();
13	}
14	}

1	class Builder {
2	private _position: Vector;
3	private _scale: Vector;
4
5	position(pos: Vector) {
6	this.position = pos;
7	return this;
8	}
9
10	scale(scale: Vector) {
11	this.scale = scale;
12	return this;
13	}
14
15	build() {
16	return new GameObject(this._position, this._scale);
17	}
18	}
19
20	new Builder().position(new Vector(12, 54)).scale(new Vector(2, 1)).build();

1	new ECS.Builder(scene)
2	.localPos(this.engine.app.screen.width / 2, this.engine.app.screen.height / 2)
3	.anchor(0.5)
4	.withParent(scene.stage)
5	.withComponent(
6	new ECS.FuncComponent('rotation')
7	.doOnUpdate((cmp, delta, absolute) => cmp.owner.rotation += 0.001 * delta))
8	.asText('Hello World', new PIXI.TextStyle({ fill: '#FF0000', fontSize: 80}))
9	.build();

1	const superBallTransmuter = (entity: GameObject) => {
2	entity.removeComponent<BallBehavior>();
3	entity.addComponent(new SuperBallBehavior());
4	entity.state.speed = SUPER_BALL_SPEED;
5	entity.state.size = SUPER_BALL_SIZE;
6	return entity;
7	}

1	class UnitFactory {
2
3	private pikemanBuilder: Builder; // preconfigured to build pikemans
4	private musketeerBuilder: Builder; // preconfigured to build musketeers
5	private archerBuilder: Builder; // preconfigured to build archers
6
7	public spawnPikeman(position: Vector, faction: FactionType): GameObject {
8	return this.pikeman.position(position).faction(faction).build();
9	}
10
11	public spawnMusketeer(position: Vector, faction: FactionType): GameObject {
12	return this.musketeerBuilder.position(position).faction(faction).build();
13	}
14
15	public spawnArcher(position: Vector, faction: FactionType): GameObject {
16	return this.archerBuilder.position(position).faction(faction).build();
17	}
18	}
