Randomness

Randomness in games

Randomness is one of the most critical factors in ensuring an engaging game. Random events turn the game into a strict uncertainty, causing players to analyze the opportunity costs of their choices.

Random Generators

LCRNG

  • Linear Congruential Random Number Generator
  • x_n = (ax_{n-1} + c) \mod{m}
  • starts with a seed value
  • works best with prime values
  • chosen well, they won't cycle until they nearly exhaust their domain
  • used in rand() from standard C library

Lagged Fibonacci methods

  • x_n = (x_{n-j}\circ x_{n-k}) \mod{m}
  • we are looking further back into the sequence of values

Carry methods

  • carries part of the result from the previous stage to the least significant bits in the next stage
  • x_n = (x_{n-k}+x_{n-r} + c_{n-1}) \mod{m}

Random Generators

Mersenne Twister

  • colossal period of 2^19937-1
  • passes Diehard test
  • uses SIMD vector instructions

Mother of all

  • multiply-with-carry technique
  • faster than twister, period of 2^250

Xoroshiro128+

  • improved MOA, faster but less random
  • used in many browsers for Math.random()

PCG Family

  • simple fast space-efficient algorithms
  • excellent statistical quality, very fast and compact

Random Functions Distribution

Doom

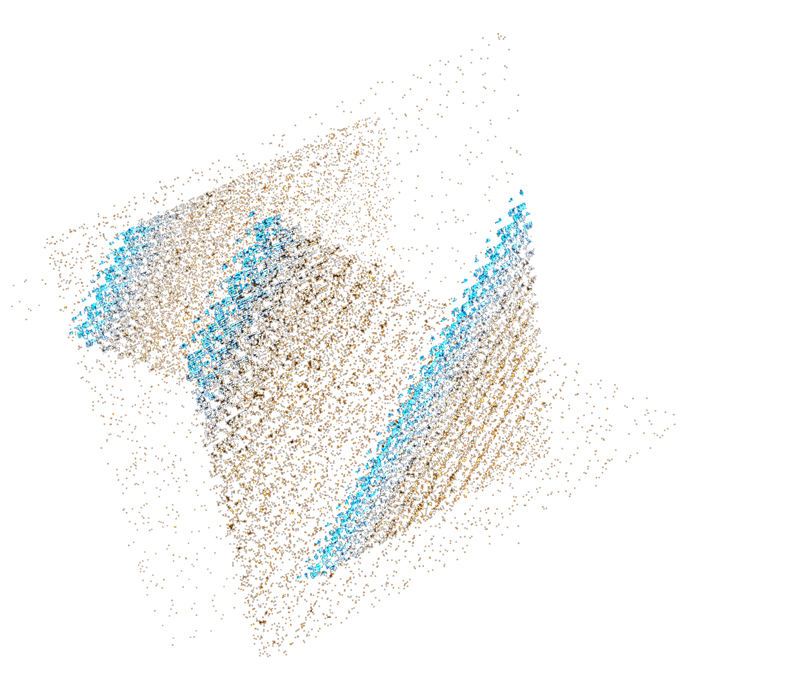

Transport Tycoon

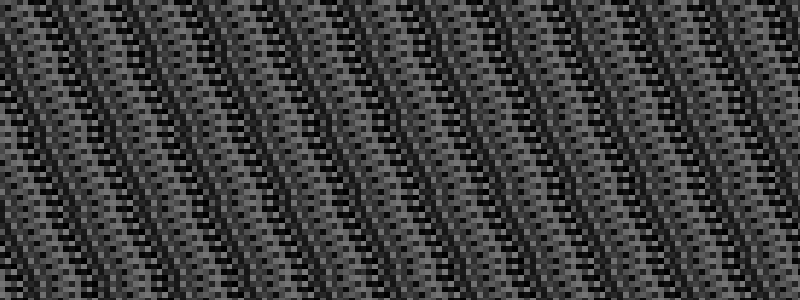

Lehmer RNG

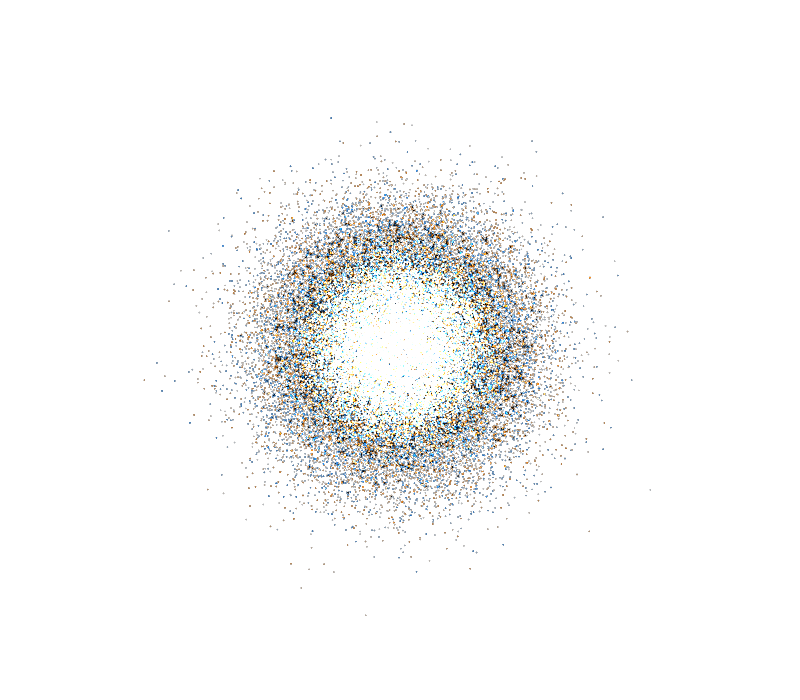

Gaussian MOA

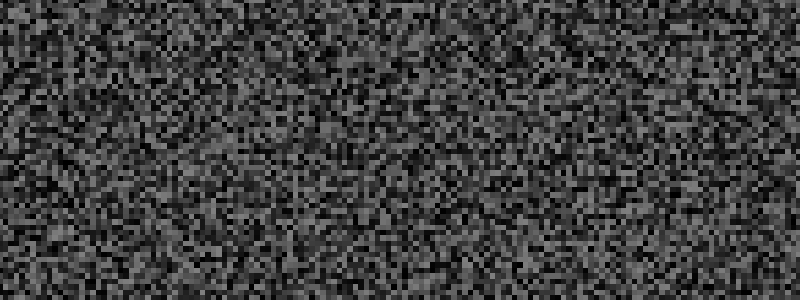

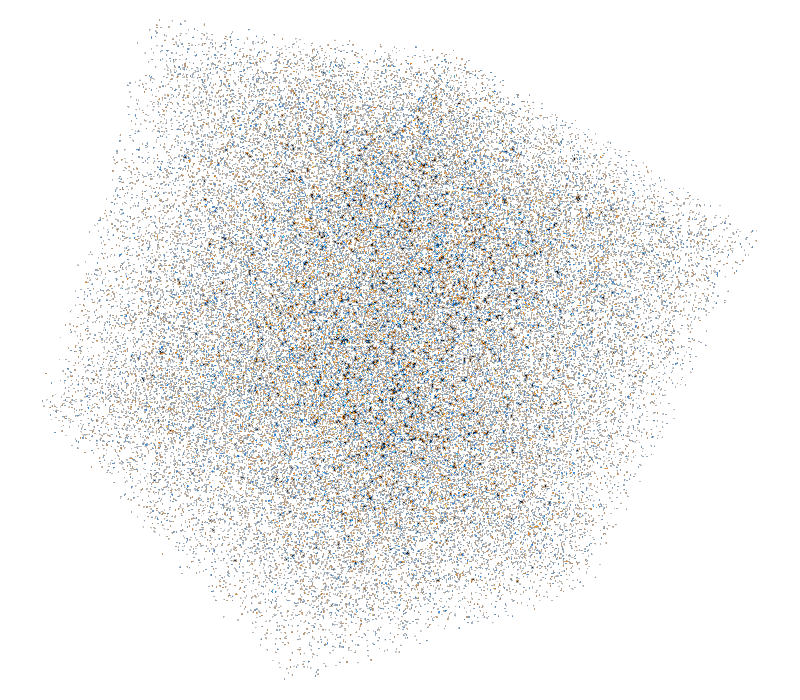

Xorshift

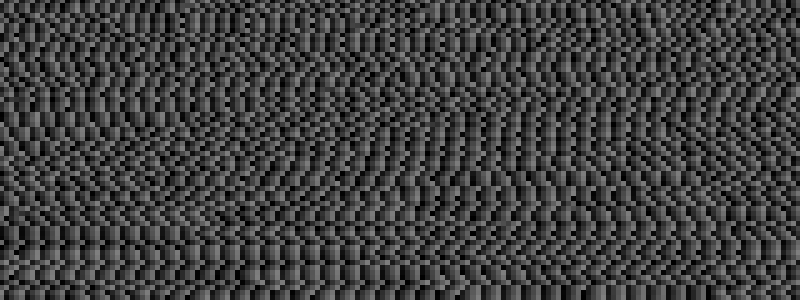

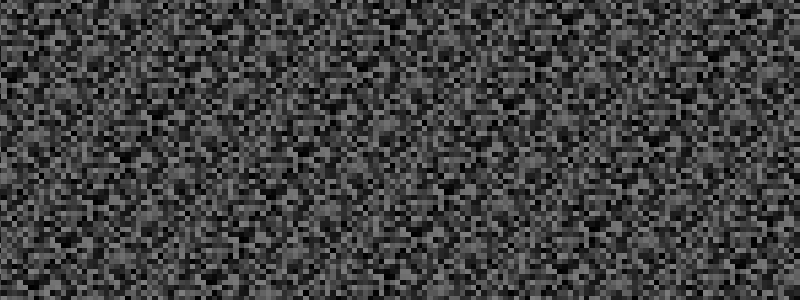

Random Functions Distribution

Uniform distribution

  • most common distribution of random generators
  • applications: noise, shuffling, dice

Gaussian (normal) distribution

  • more common in games - every characteristic has some kind of average, with individuals varying with a normal distribution
  • can be calculated from a uniform generator via transformation (Box-muller algorithm)
  • applications: height of trees, aiming for projectiles, average speed, physical reaction time, reload rate

Uniform distribution

Gaussian distribution

Terms

Seed

  • a hash that initializes random generators
  • a good source of entropy is user input or time

Loot

  • items obtained over the gameplay (money, spells, equipment, weapons,...)

Spinning

  • calling the random function on a time-frame basis without using the result
  • advances the game to a difficult-to-predict place

Rarity Slotting

  • a method of standardization to determine rates (common, rare, epic, legendary)
  • can be defined as a rarity table, calculated via weighted sum

Random encounter

  • popular mechanics of RPG games (Final Fantasy, Pokémon, Golden Sun)
  • the game suddenly shifts to battle mode, forcing the player to fight
  • after winning the battle, the player receives a reward (skill upgrade, items, money)

Randomness in games

Final Fantasy 1 (1987)

  • reading sequentially from a list of pre-generated numbers (256 values in ROM)
  • we could encounter the same group of enemies -> surprise determination

Super Mario 64 (1996)

  • used LCRNG with 65114 possible states
  • no spinning, the algorithm cycles only during certain events

Pokémon series for GBA (2002)

  • in Ruby/Diamon/Emerald, the RNG is spun every frame
  • Emerald sets the seed to zero on power-up

Darkwing Duck

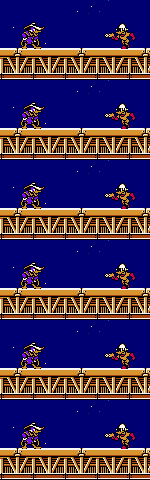

  • delaying a frame causes a different drop

Randomness in games

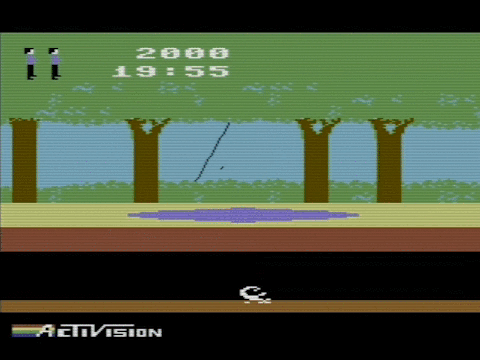

Pitfall! (1982)

  • used linear-feedback shift register
  • every screen is defined by 1 byte - 256 screens in total
  • e.g. if a certain bit is 1, there is a water in the level

Doom (1993)

  • the worst pseudo-random number generator ever
  • a list of 256 random numbers cycled through

XCOM: Enemy Unknown (2012)

  • no random spinning - dangerous when saving the game before taking an important shot

No Man's Sky (2016+)

  • very little data is stored on the game's servers as all elements of the game are created through deterministic algorithms from a 64-bit seed

Example: Random Number Table in Doom

   1 unsigned char rndtable[256] = {


   2       0,   8, 109, 220, 222, 241, 149, 107,  75, 248, 254, 140,  16,  66 ,


   3      74,  21, 211,  47,  80, 242, 154,  27, 205, 128, 161,  89,  77,  36 ,


   4      95, 110,  85,  48, 212, 140, 211, 249,  22,  79, 200,  50,  28, 188 ,


   5      52, 140, 202, 120,  68, 145,  62,  70, 184, 190,  91, 197, 152, 224 ,


   6     149, 104,  25, 178, 252, 182, 202, 182, 141, 197,   4,  81, 181, 242 ,


   7     145,  42,  39, 227, 156, 198, 225, 193, 219,  93, 122, 175, 249,   0 ,


   8     175, 143,  70, 239,  46, 246, 163,  53, 163, 109, 168, 135,   2, 235 ,


   9      25,  92,  20, 145, 138,  77,  69, 166,  78, 176, 173, 212, 166, 113 ,


  10      94, 161,  41,  50, 239,  49, 111, 164,  70,  60,   2,  37, 171,  75 ,


  11     136, 156,  11,  56,  42, 146, 138, 229,  73, 146,  77,  61,  98, 196 ,


  12     135, 106,  63, 197, 195,  86,  96, 203, 113, 101, 170, 247, 181, 113 ,


  13      80, 250, 108,   7, 255, 237, 129, 226,  79, 107, 112, 166, 103, 241 ,


  14      24, 223, 239, 120, 198,  58,  60,  82, 128,   3, 184,  66, 143, 224 ,


  15     145, 224,  81, 206, 163,  45,  63,  90, 168, 114,  59,  33, 159,  95 ,


  16      28, 139, 123,  98, 125, 196,  15,  70, 194, 253,  54,  14, 109, 226 ,


  17      71,  17, 161,  93, 186,  87, 244, 138,  20,  52, 123, 251,  26,  36 ,


  18      17,  46,  52, 231, 232,  76,  31, 221,  84,  37, 216, 165, 212, 106 ,


  19     197, 242,  98,  43,  39, 175, 254, 145, 190,  84, 118, 222, 187, 136 ,


  20     120, 163, 236, 249


  21 };


  22


  23 int P_Random (void) {


  24     prndindex = (prndindex+1)&0xff;


  25     return rndtable[prndindex];


  26 }

Procedural generation

Procedural content generation

  • a content that is generated by algoritms
  • unlimited number of possible structures
  • lower storage overhead
  • higher gameplay variety and replayability
  • worse quality control
  • we can generate an unplayable world

Games with procedural content

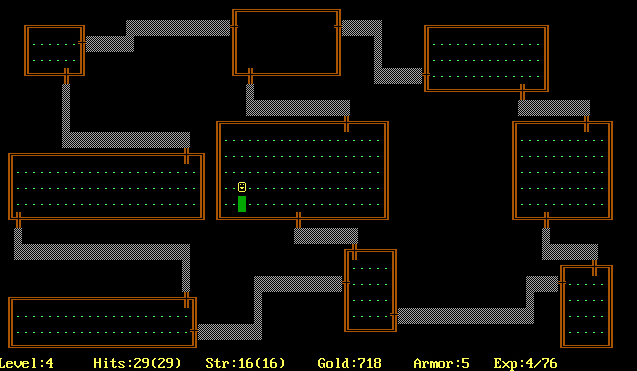

  • Rogue (1980) - dungeons
  • Diablo (1996) - dungeons

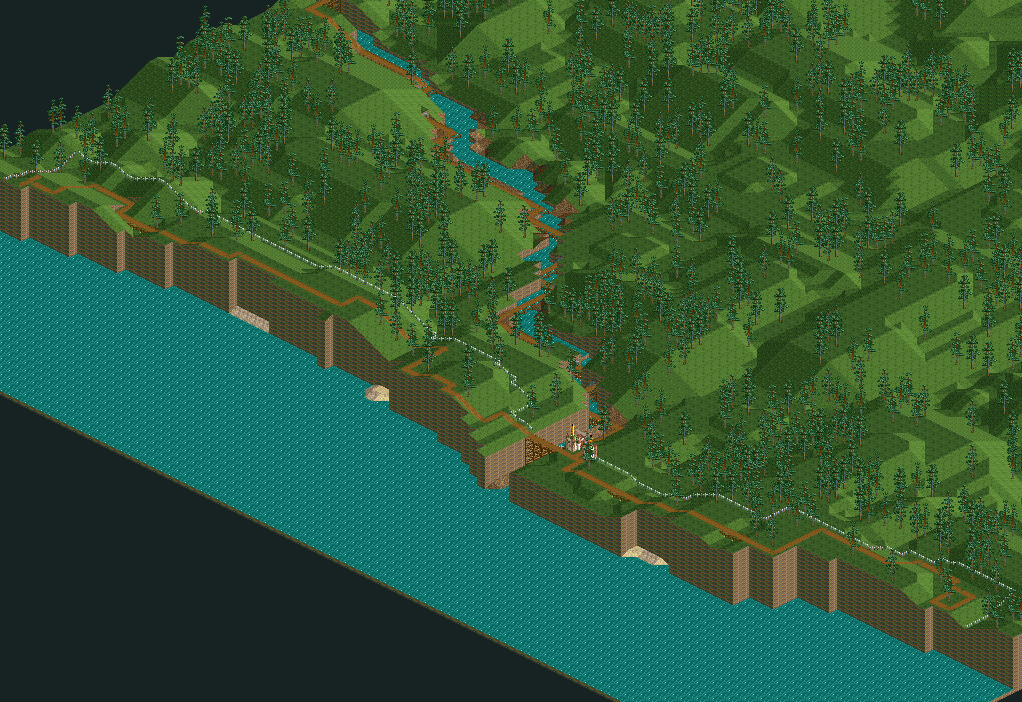

  • OpenTTD (2004) - terrain
  • Dwarf Fortress (2006) - game content, history, creatures
  • Spore (2008) - creatures, civilizations, planets
  • No Man's Sky (2016) - galaxies, planets, flora, fauna

Procedural generators

Terrain generators

  • noise generators
  • box linear filters (box blur)
  • midpoint displacement

Level generators

  • cyclic generators
  • marching squares
  • rule-based generators

Pattern generators

  • noise generators
  • L-Systems
  • markov chains

Filling space

  • random walks
  • cellular automata
  • Poisson-disc sampling
  • settling
  • wang tiles

Partitioning space

  • binary space partition
  • voronoi diagrams
  • dijkstra maps
  • tree mapping

Example: Terrain generator

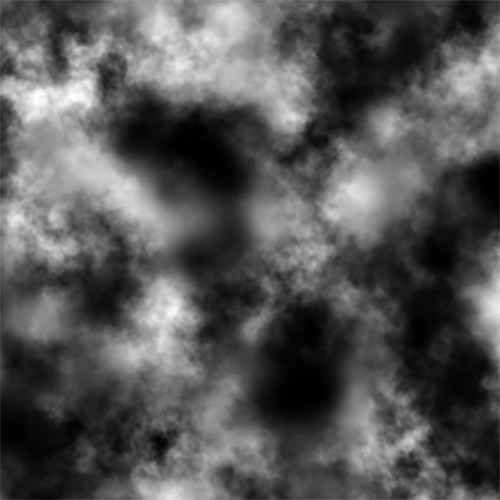

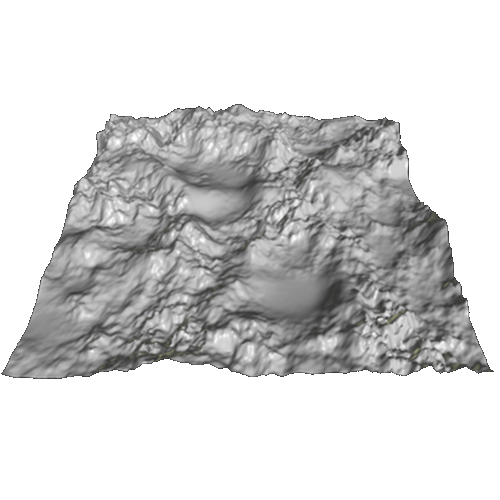

  1. generate a heightmap
  2. upscale the heightmap to desired resolution
  3. interpolate missing points
  4. apply effects (erosion, blur,...)

Example: 2D Level generator

  1. create a bounding box
  2. split the box into regions (axis-aligned binary splits)
  3. optional: skim perimeter regions
  4. place connections
  5. assign region types
  6. make adjustments

Example: Settling

  1. generate overlapping bounding boxes
  2. apply a repulsive force until they no longer overlap
  3. generate shapes
  4. generate paths

Noise

  • Randomness is used to vary characteristics, noise is used to vary them over time or in space
  • Noise functions
    • Lattice-based
      • Perlin noise, Simplex noise, Wavelet noise, Value noise
    • Point-based
      • Worley noise (Voronoi/Cellular)

Perlin Noise

Simplex Noise

Worley Noise

Perlin Noise

  • Perlin Noise - developed by Ken Perlin in 1983
  • Simplex Noise - Perlin's another noise, fewer artifacts and lower computational overhead
  • both noises set a pseudo-random lattice in space and interpolate between respective points
  • the noise is constructed from octaves (contribution to the signal at a particular scale)
  • the signal is interpolated via a quartic function 6t^2-15t^4+10t^3
   1 float PerlinNoise2D(int x, int y, float persistence, int octaves, float zoom) {


   2     float total = 0.0f;


   3     // initial frequency and amplitude


   4     float frequency = zoom;


   5     float amplitude = 1.0f;


   6


   7     for (int i = 0; i < octaves; i++) {


   8         // calculate noise


   9         total = total + InterpolatedNoise(x*frequency, y*frequency) * amplitude;


  10         // update frequency and amplitude


  11         frequency = frequency * 2;


  12         amplitude = amplitude * persistence;


  13     }


  14     return total;


  15 }

Fractals

  • discovered in 1975
  • geometric shapes that can be subdivided in parts, each of which is a reduced-size copy of the whole
  • used for creating procedural textures and visual effects
  • possible use in vast real-time game worlds is still a subject of discovery

Geometric hashing

World size

  • diameter of the known universe: 10^{26} m
  • the smallest theoretical structure: 10^{-35} m
  • 256 bits gives us 10^{76}  values
  • IEEE 754 format stores 24b of resolution in the mantissa: range of 1.67\cdot 10^7
    • single precision, 32bit: [\pm 2^{-126}, (2-2^{-23})\cdot 2^{127}]
    • double precision, 64bit: [\pm 2^{-1022}, (2-2^{-52})\cdot 2^{1023}]
  • most games set their basic units as meter, making millimeter the smallest unit
  • range areas for 32b numbers:
Unit SizeSmallest UnitUpper Range [m]Upper Range Area
100mSpace Ship1.67 x 10^9Diameter of the Sun
1mCar1.67 x 10^7Asia
1cmCoin1.67 x 10^6Mexico
1mmFluid Particle1.67 x 10^5Paris
100μmDust1.67 x 10^4Manhattan

Map size comparison

IEEE 754 precision

  • a quarter of all 32b numbers are in the range of [0,1] , half of them in [-1,1]
  • from 8 388 608 to 16 777 216, the precision for 32b is 1
  • if the game world is too large, the precision close to borders may become insufficient

Spatial partitioning

Bounding volume

  • groups objects or their parts together based on their positions and sizes
  • if the object moves, so will the hierarchy
  • used for physics, shape analysis, precise collision detection

Spatial data structure

  • a structure that stores objects by their position
  • is locked to the world
  • used for range queries, neighborhood searching, rough collision detection
  • the more objects we have, the more benefits we get

Implementations

  • Quad-tree - for 2D and semi-3D space
  • Oct-tree - for 3D space
  • Grid - a square grid
  • BSP (binary-space partitioning), portals, anti-portals,...

Oct-tree

Quad-tree

  • hierarchical partition
  • each inner node has 4 children
  • overlapping solid objects are put into all children they touch
  • only objects in the same leaf can be in collision
  • useful for outdoor scenes
  • good for object sparsely spread that do not move too fast

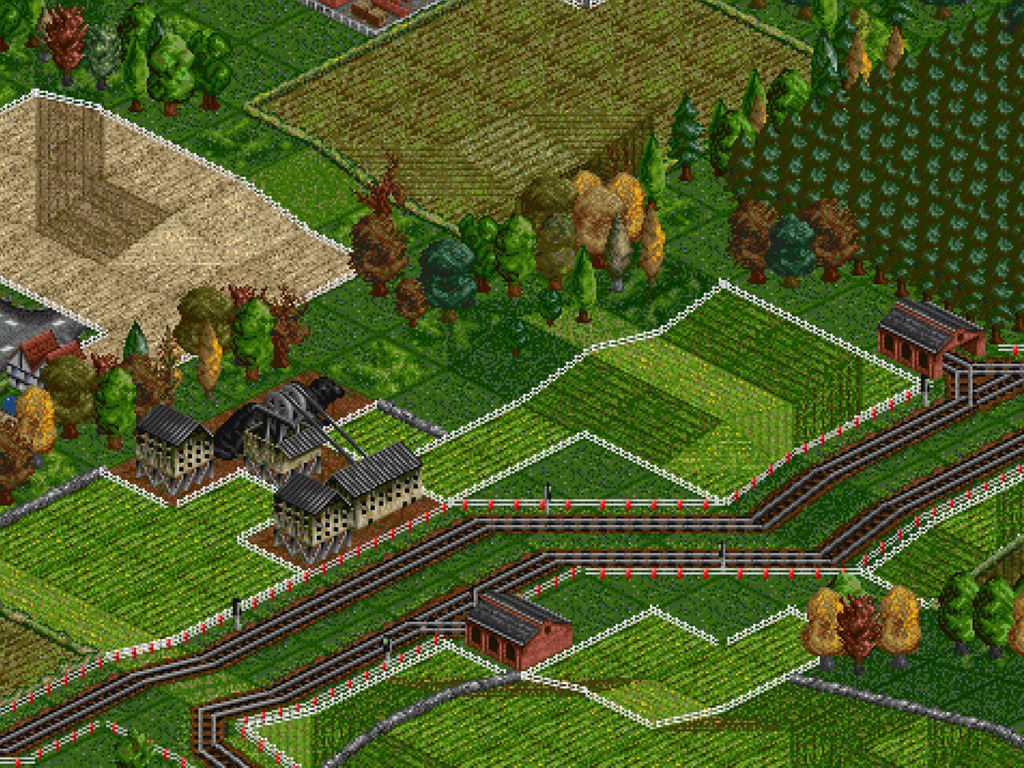

Quad-tree and geometric hashing

Oct-tree

  • doesn't need an expensive preprocessing stage
  • allows very complex level geometry and easy editing
  • the tree may contain a whole scene or only one object
  • used for LoD, collision detection, voxel graphics,...
  • no subdivision - 1 node
  • 1 subdivision - 9 nodes
  • 2 full subdivisions - 73 nodes
  • 3 full subdivision - 585 nodes

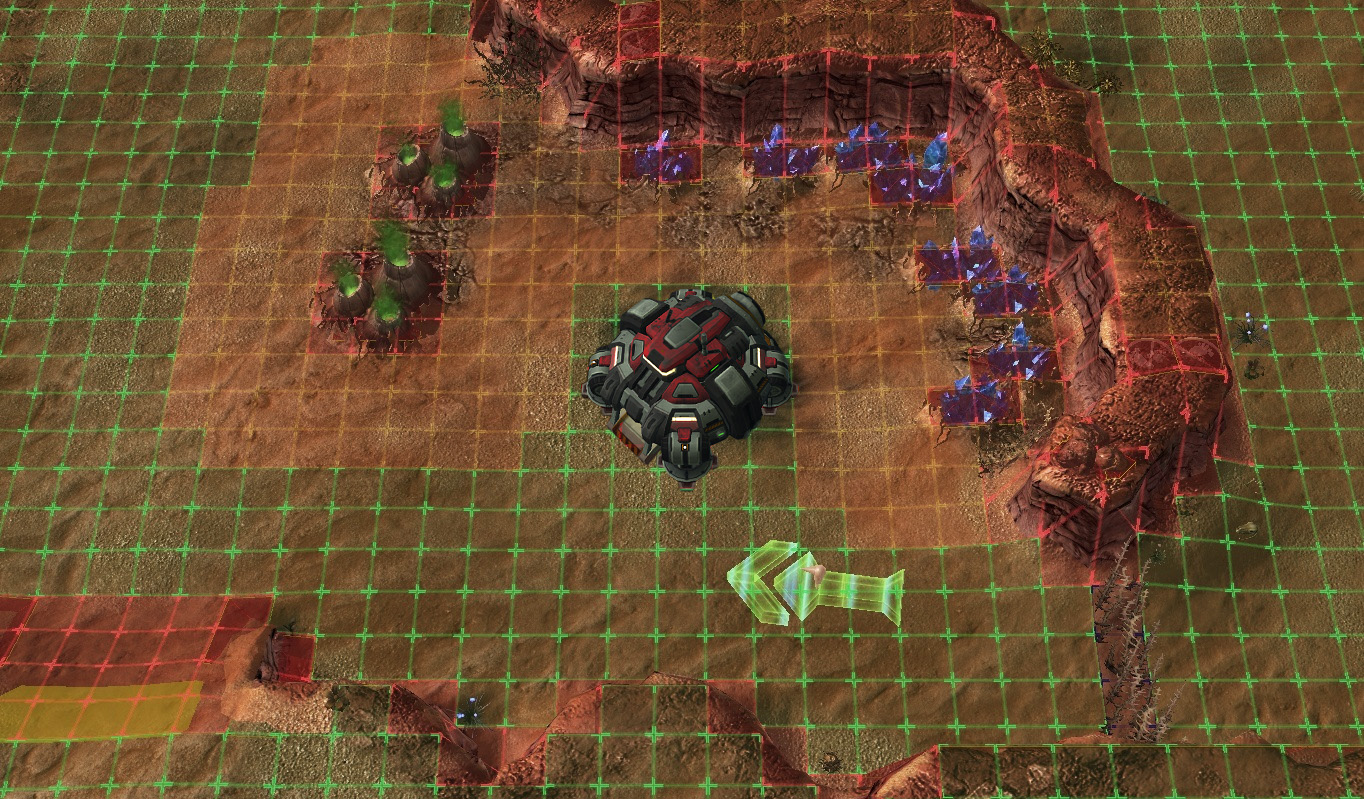

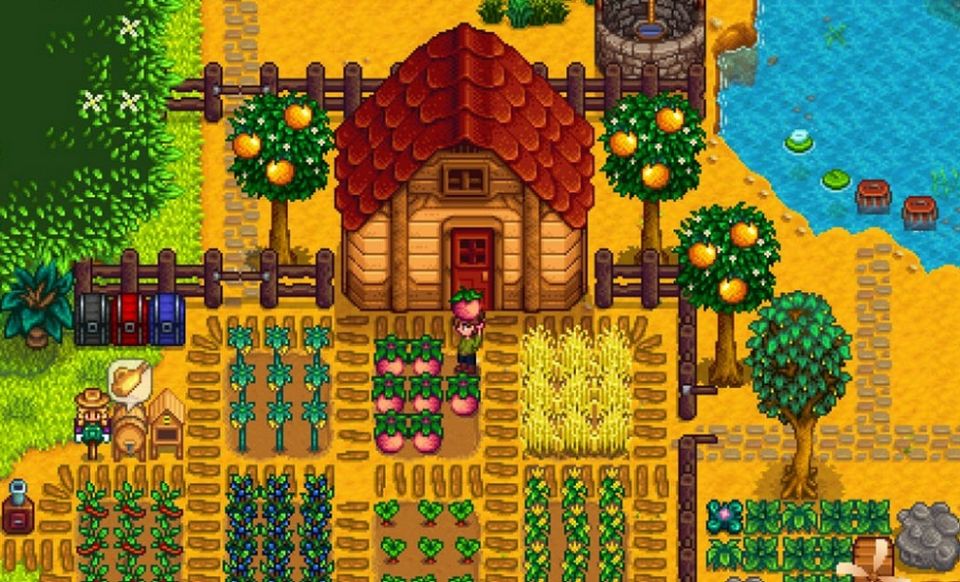

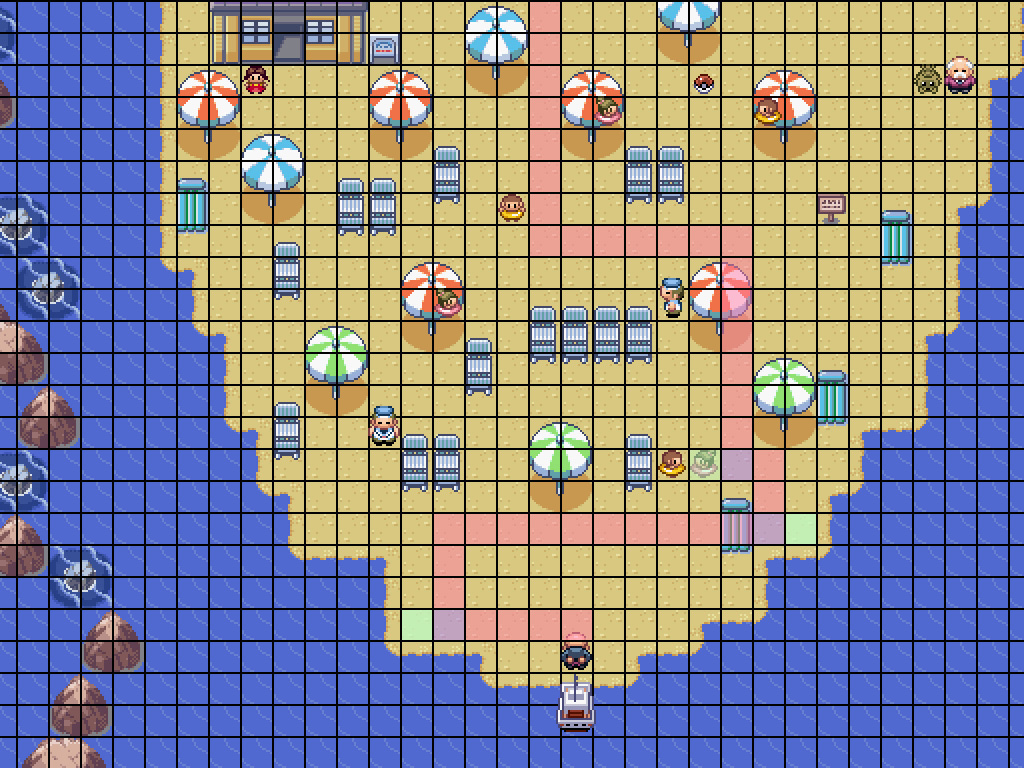

Grid

  • implemented as an 1D/2D/3D array or a hash-table
  • each cell has a list of units that are inside
  • if a unit crosses the boundary of the cell, we need to move it to the other list
  • good for a large amount of fast objects that are uniformly distributed
  • very fast to locate an object - in sharp contrast with recursing down a quad-tree
  • takes up more memory, granularity is static

Navigation

Navigation

  • essential feature for many games

Types

  • local navigation in the environment (collision avoidance, ORCA)
  • global navigation in the environment (pathfinding)
  • navigation in a custom graph (e.g. task-based planning)

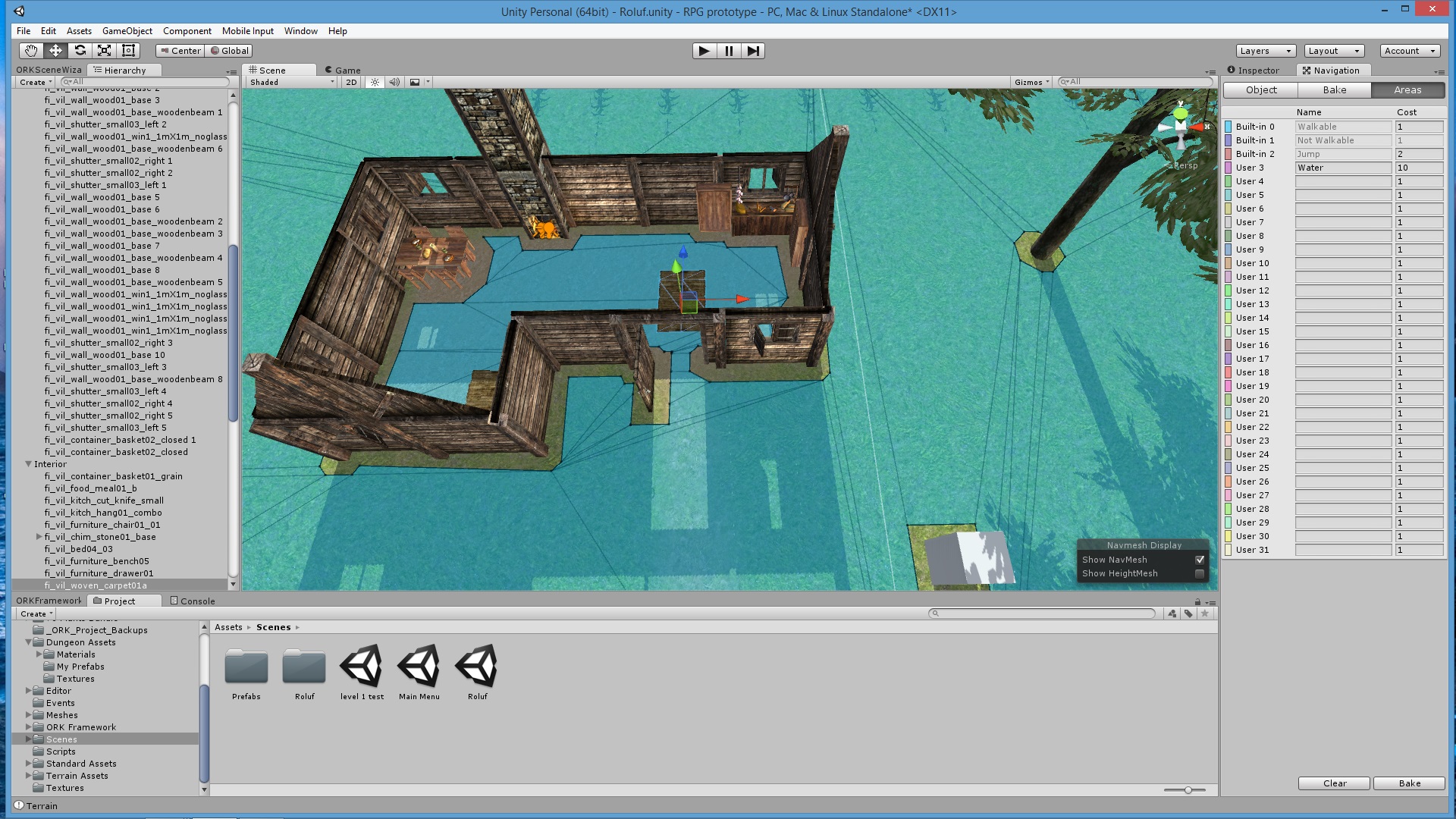

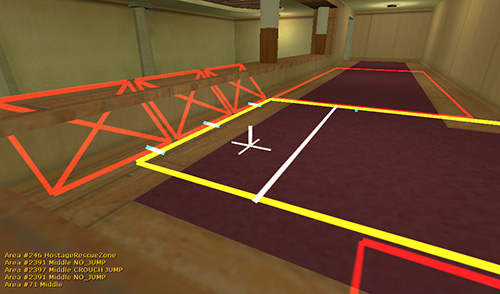

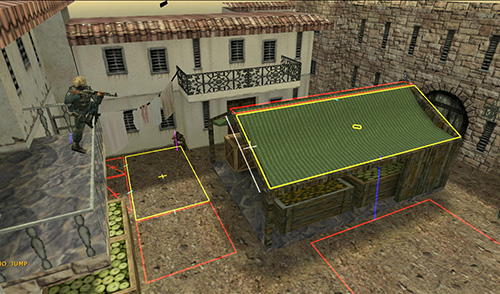

Navigation graph

  • abstraction of all locations in a game environment the agents may visit
  • enables game agents to calculate paths that avoid water, prefer traveling on roads to forest etc.
  • may carry additional attributes (functions, type of a crossing etc.)
  • waypoint-based, mesh-based, grid-based
  • Node - position of a key area within the environment
  • Edge - connection between those points

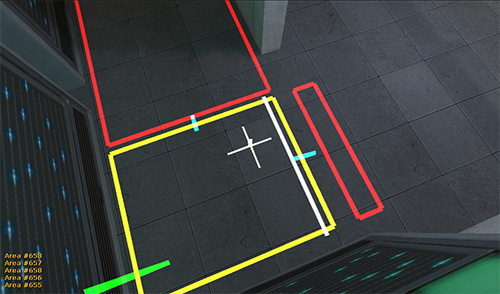

Navigation graph

Waypoint-based

  • level designer places waypoints that are later linked up

Mesh-based

  • created from a polygonal representation of the environment's floor
  • describes walkable areas

Example: Unity mesh editor

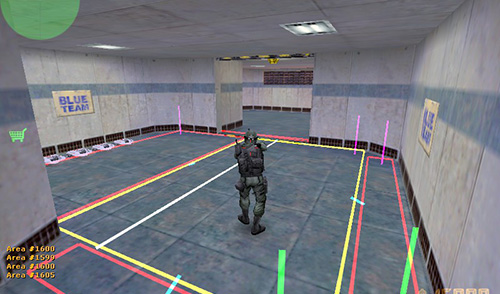

Example: Counter-strike mesh editor

Navigation graph

Grid-based

  • created by superimposing a grid over a game environment
  • traversability flag indicates whether the cell is traversable or not
  • connection geometries: tile, octile, hex
  • reflecting renvironmental changes = recalculation of the traversability flag

Example: Connection geometry

Pokémon series (Tile)

OpenTTD (Octile)

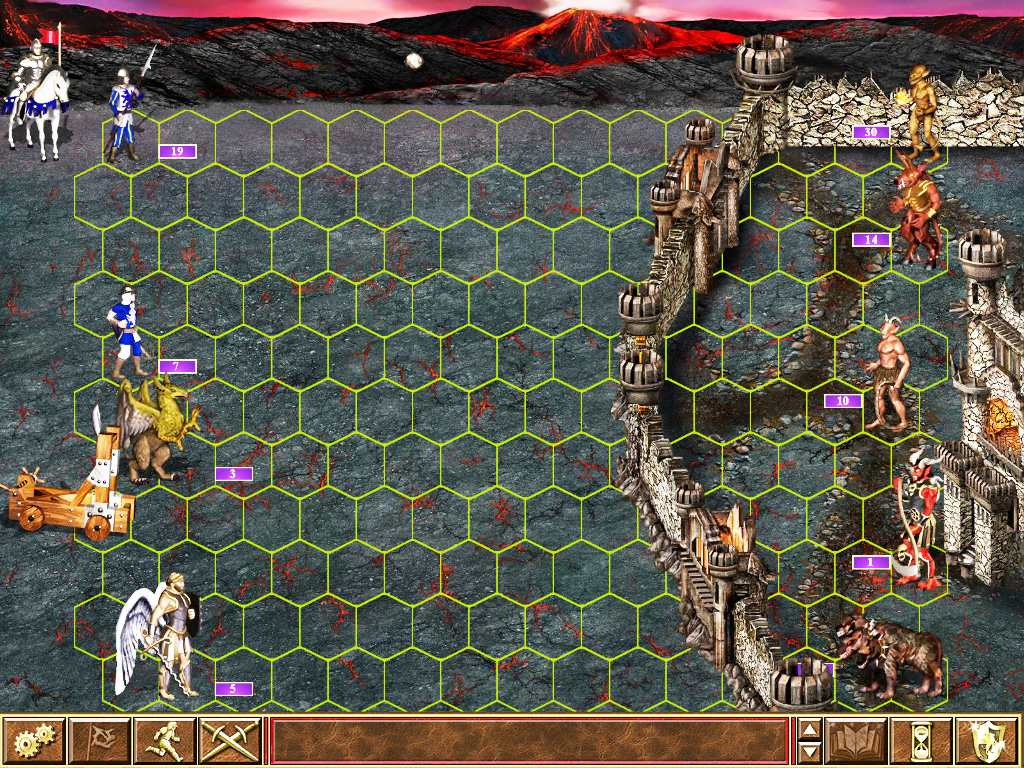

Heroes of M&M 3 (Hex)

Combined geometry

  • units can move in any direction, static objects are located on a grid

Starcraft II

Stardew Valley

Pathfinding

Properties

  • completness - whether a solution is found or not
  • optimality - quality of the solution found
  • smoothing - whether the agent could move along the path smoothly

Environment type

  • static - the map never changes during the gameplay
  • dynamic - areas previously traversable can be obstructed later

NPC movement

  1. find the closest graph node to the NPC's current location: A
  2. find the closest graph node to the target location: B
  3. find path from A to B
  4. move to A
  5. move along the path to B
  6. move from B to the target location

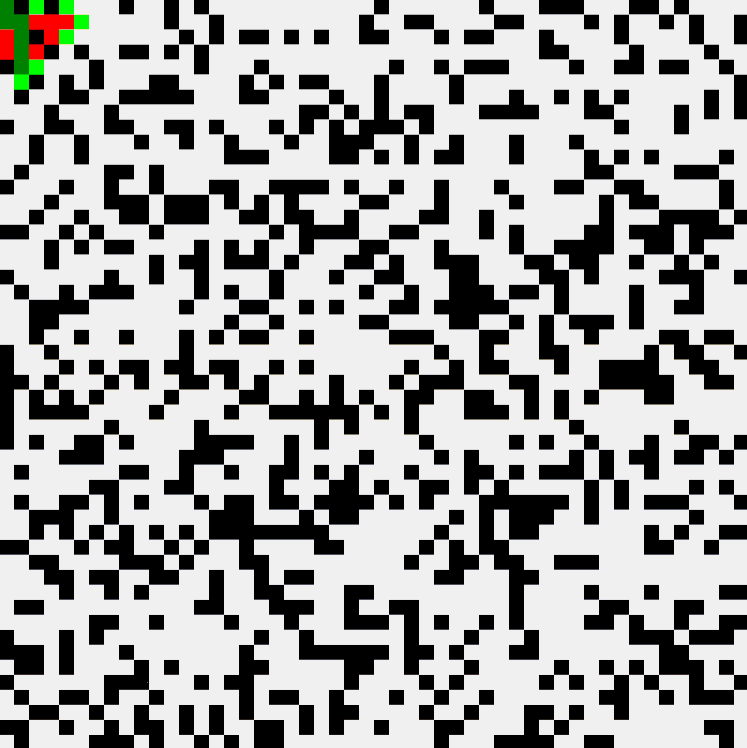

Pathfinding algorithms

Uniformed graph searches

  • ignores any associated edge cost
  • DFS (depth-first search)
    • searches by moving as deep into the graph as possible
    • doesn't guarantee to find the best path
  • BFS (breadth-first-search)
    • fans out from the source node, always finds the best path

Cost-based graph searches

  • Dijkstra's Algorithm
    • explores every node in the graph and finds the shortest path to every other node in the graph
    • uses CSF (cost-so-far) metric
  • A* (Dijkstra with a Twist)
    • extension of Dijkstra, invented in 1968
    • main difference: augmentation of the CSF value with a heuristic value

A*

  • improved Dijkstra by an estimate of the cost to the target from each node
  • Cost F = G + H , where G  is the cost-so-far and H  is the heuristic estimate
  • Heuristics: Euclidean, Manhattan, adaptive, dynamic,...
    • Manhattan distance will work if almost no obstacles appear

Improvements

  • preprocess the map, calculate universal paths
  • mark tiles which cannot lead anywhere as dead-ends
  • limit the search space

Pathfinding algorithms: Comparison

  • breadth-first search ignores the cost
  • Dijkstra ignores the topology of the graph
  • A* considers both

HPA*: Hierarchical Pathfinding A*

  • uses a fixed-size clustering abstraction (problem subdivision)
  • divides the navgraphs into regions, transitions are connected by intra-edges
  • gate - longest obstacle-free segment along a border
  • fast enough for most games, but requires semi-static environment
  • 3 stages: build an abstract graph, search the abstract graph for an abstract path, refine the abstract path into a low-level path

Lecture Summary

  • I know what purpose can serve uniform and gaussian distributions
  • I know what is a loot, spinning, rarity slotting and random encounter in games
  • I know something about noise functions
  • I know basic structures for spatial partitioning: grid, quad-tree, and oct-tree
  • I know something about pathfinding algorithms, such as BFS, Dijkstra and A*

Goodbye Quote

Mohu vycvičit experty černé magie na mistry, ovšem jen pokud splňují má kritéria. Budu učit jen opravdové zasvěcence, ty, kteří jsou tak zlí, že jejich reputace je ta nejhorší - prostě opravdové Miloše Zemany. Nedělám žádné výjimky a též nežádám žádné peníze, stačí ujištění, že budete po světě šířit zlo a zvyšovat daně.Might and Magic 6
I can bring experts of dark magic up to master, provided they meet my standards. I only teach the genuinely dedicated - those so evil their reputations are as bad as they can get. The truly notorious. I make no exceptions, and charge no fee in the interests of spreading darkness throughout the world.Might and Magic 6
