Course Summary

FIT CTU

Adam Vesecký

NI-APH

Summary

APHGames.io

Course Summary

What are games

What is a computer game?

Computer Application

a computer program that helps the user to perform tasks

Computer game

a computer program where players interact with objects on a screen for the sake of entertainment

Gamification

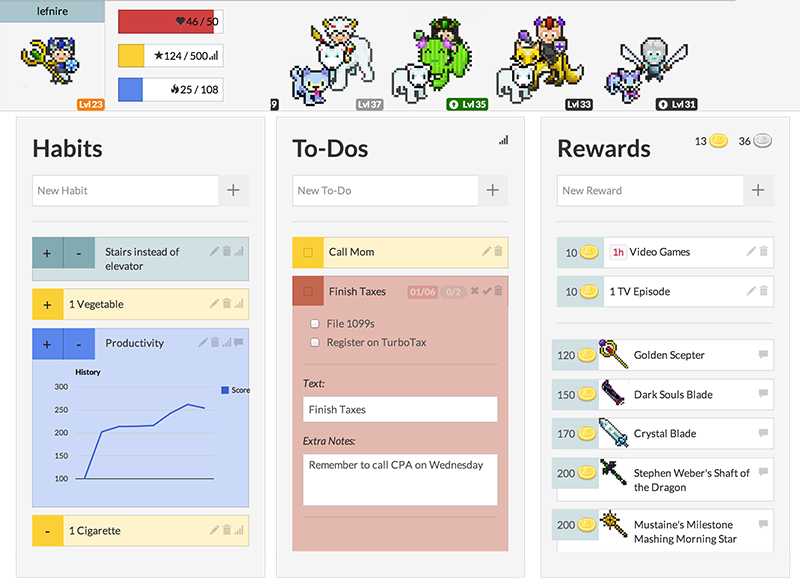

application of game elements to other areas to encourage engagement with a product or sevice

Computer games are not applications! Yet the line between them is blur.

Game Mechanics

Terms

Emergence

refers to the fact that the behavior is the result of a complex and dynamic system of rules

Progression

refers to the structures in games where a designer outlined the possible game states beforehand, usually through level design

Gameplay

an emergent property of the game as defined by its rules

Mechanics

a set of rules governing the behavior of a single game element

System

interacting group of game elements forming a unified whole

Level

a structure in a game that dictates what challenges players encounter

Game Mechanic Entities

Space

various spaces that can exist in a game and how they are related
physical and conceptual relationships

Objects

entities that can be seen or manipulated

Actions

processes that change the game state
as a reaction to some sort of input

Rules

statements that describe constraints and consequences

History of game engines

ID Tech

family of game engines developed by ID Software
Id Tech 0 - the very first game engine
every next game had more advanced technology
all games were based on raycasting until 1996

Hovertank 3-D

1991

Catacomb 3-D

1991

Wolfenstein 3-D

1992

Doom

1993

Quake Engine

~id Tech 1
released by ID Software in 1996
initiated the rise of 3D gaming
true 3D real-time rendering, 3D light sources
Id Tech 1 Games:
- Quake, Hexen 2, Silver Wings
Other IdTech-based games:
- Call of Duty
- Medal of Honor
- Daikatana
- Half-Life (forked Source Engine)
Successors:
- id Tech 2, 3, 4, 5, 6, 7 (2020)

Quake source code: link

Game Engines Overview

Game Engine Primary Modules

Game Loop - the heartbeat of all games
Scene Manager - manages objects and structures them in a scene graph
Input Manager - handles inputs (keyboard, mouse, touch, joystick, gamepad,...)
Resource Manager - manages assets, controls a cache
Memory Manager - memory allocator and deallocator
Rigidbody Engine - event-based collision detection
Physics Engine - handles behavior of objects based on forces and impulses
Rendering Engine - renders the game, takes care of the rendering pipeline
Animation Engine - handles animations
Scripting Engine - a bridge between the engine and interpreted languages (JS, C#,...)
Audio Engine - plays music, clips, sounds, calculates 3D sound

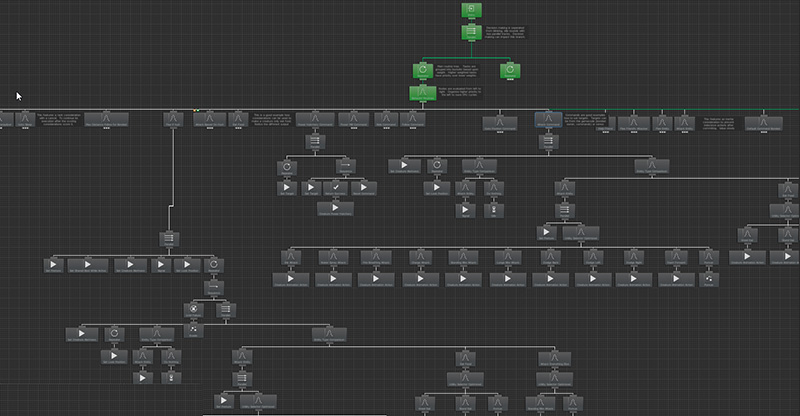

AI Engine - abstract engine for AI (state machines, behavioral trees,...)
Networking Engine - handles multipeer communication

Other modules - GUI framework, Level Editor, Camera, Event System, LOD system,...

Game Loop

the most important part of the game engine
each turn advances the state of the game
usually coordinated with the event loop of the platform/virtual machine
optimal time step for rendering: 60 FPS = 16.6 ms per frame
audio, input, and physics require more frequent updates

In general, a program spends 90% of its time in 10% of its code. The game loop will be firmly in those 10%.

Simple Game Loop

Game loop with separated rendering

Cooperative game loop

synchronization can be provided by delayed invocation
first used in Ultima VII (1994)

Update method

Fixed time step

each update advances the game by a certain amount of time
deterministic and stable
the game may slow down

Variable time step

each update advances the game based on how much real time has passed since the last frame
natural
non-deterministic and unstable

Adaptive time step

switches between variable and fixed time step based on thresholds
deals with long breaks better than the other two

Some old games were tied with the system clock, hence their CPU-sensitivity.

Update Inconsistencies

game objects are consistent before and after every update
they may get to an inconsistent state during the update - one-frame-off lag
possible solutions: bucket update, script execution order (Unity), process priority (Godot)

Object A reads previous state of Object B and Object B reads previous state of Object C

Scene Graph

essential structure of every interactive application
a way of ordering data into a hierarchy
represented as an N-Tree or a regular graph
implemented as an array, oct-tree, quad-tree, bounding volume hierarchy,...
parent nodes affect child nodes (translation, rotation, scale,...)
leaves represent atomic units (shapes, vertices, imported meshes)

Scene Manager

uses scene graph as a logical hierarchy
responsibility: communication, binding to logical components
Unity Engine - game objects form a hierarchy
Unreal Engine - components form a hierarchy
Godot Engine - everyting forms a hierarchy

Scripting Engine

Game Engine Scripting API

the engine needs to communicate with the script - provided by bridging
bridge is a performance bottleneck, especially for per-frame calls
more scripting languages = more bridges to maintain
Marshalling - transforming memory representation of an object between two domains (different programming languages)
Semantic gap - descriptive difference of an object in various representations (e.g. relational database vs object-oriented structure)
applies to visual representations as well

Introduction to Assets

What are assets?

Everything that is specific to the game (and not to the engine).

Any piece of data which is in a format that can be used by the game engine.

All media elements that are presented to the player and protected by copyright.

Resource Manager

Provides access to all resources (~assets)

meshes, materials, shaders, animations, textures, clips, levels
Resource Cache - used for faster access

Manages lifetime of each resource

most managers maintain some kind of registry

Ensures that only one copy of each resource exists in memory

resource GUID - usually path to the file, guaranteed to be unique

Loads required resources and unloads those no longer needed

loading is simpler than unloading

Handles streaming

in case of open worlds

Data loading

Level loading

only one game chunk is loaded at a time
requires a loading screen or a pre-rendered cutscene
used in Tomb Raider, Doom, Quake,...

Air locks

air lock is a small scene (room, hall)
when the player enters the area from which can't see the previous one, the next scene is loaded
used in Half-Life, Portal (partially)

World streams

the engine unloads regions too far away and loads new regions the player is heading to
2D uses lazy loading

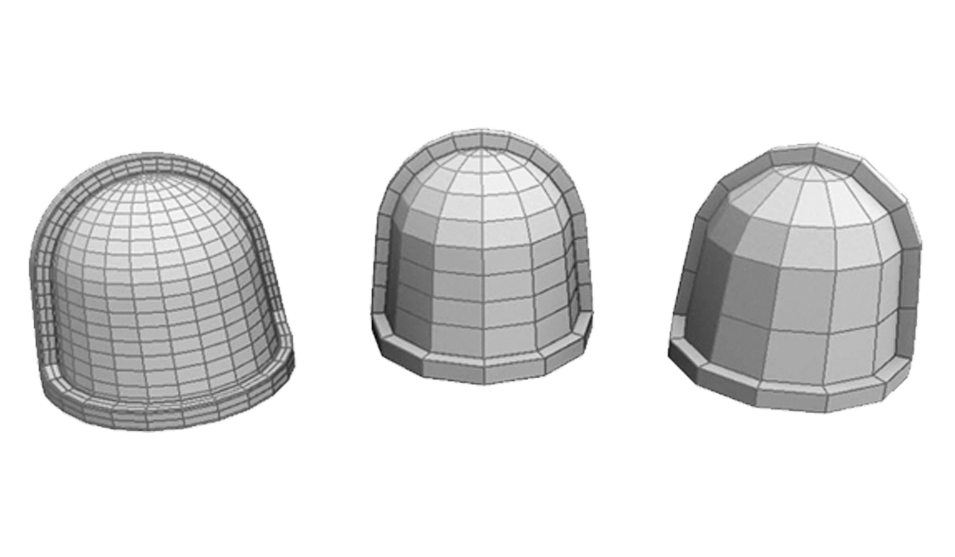

3D uses LOD system - chunks are loaded at a variable granularity
used in GTA, WoW, Arma, and many 2D scrollers

Multimedia assets

Image Formats

JPEG

Joint Photographic Experts Group
used for digital photography
doesn't support alpha channel
don't use it for pixel-art

PNG

Portable Network Graphics
good results for simple images (not real pictures)

TGA

Truevision TGA
favorite format for textures

SVG

Scalable Vector Graphics
format for vector images

Videos and Cutscenes

one of the most progressive properties of a game
a) fully progressive - video, in-game cutscene
b) partially progressive - i.e. custom skin of the avatar in the scene
c) partially emergent - the player can walk around but can't control the scene
d) fully emergent - generated cutscene
1980's - in-game cutscenes
1990's - pre-rendered video cutscenes
2000's - in-game cutscenes
2010's - pre-rendered video cutscenes
2020's - in-game cutscenes

Textures

pieces of bitmaps that are applied to an object
textures are ultimately converted to formats that are specific to platform and graphic API

Types

diffuse texture
displacement texture
normal texture
volumetric texture
tileable texture
sprite atlas

Formats

Desktop: BC6H, BC7, DXT1, DXT5
iOS: ATSC, PVRTC
Android: ASTC

Sprites

Sprite

a single graphic image that is incorporated into a scene
allows to create large scenes as you can manipulate each sprite separately

Spritesheet

a set of corresponding sprites

Sprite atlas

a single texture image containing a list of spritesheets

Game Model

Domain Model

contains rules, game mechanics and essential data to the gameplay

Presentation Model

a model represented to the player
e.g. played sounds, animated sprites

Physics model

all entities that take part in physical interaction

AI model

all data and structures that are processed by AI (navigation maps, behavioral trees,...)

Networking model

everything that has to be in sync with other models on other devices

Component-oriented architecture

Component

a unit of composition with specified interfaces and explicit context dependencies
components are plug-and-play objects
prefers composition over inheritance
behavior of an entity is determined by the aggregation of its components

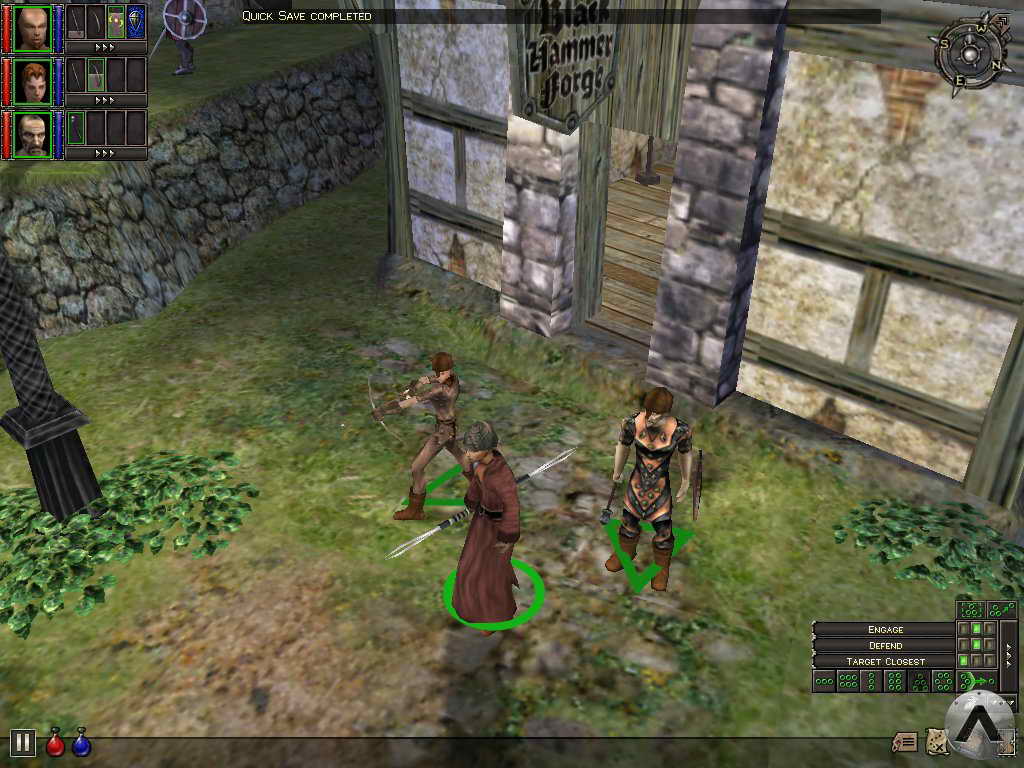

Dungeon Siege (2002) - one of the first games featuring component-based systems

ECS Pattern

Entity-Component-System (+ Attribute)
common pattern for component-oriented libraries and engines
game object is just a container for data and logic
components are attached to their game objects
can be easily integrated into the scene graph

Terms

Entity

a single entity/game object

Component

instantiable unit that defines functional behavior

System

a superior component responsible for a bigger scope (HealthSystem, GameManager, AudioSystem)

Attribute

data attached to an entity
some engines use data components instead of attributes

The naming varies. Some engines use Behaviours for Components, Components for Systems, Properties for Attributes etc.

Messaging

How components communicate

By modifying the container object's state

e.g. shared state machine
indirect communication
difficult to debug

By direct calls

OOP way
fast, but increases coupling
we need to know what to call
e.g. calling a global component that is always present

By using a message broker

events and commands
each component can declare interest in relevant messages
e.g. listening to ITEM_PICK event and playing a sound

Message Broker

components should be notified of any state change that is relevant
can be used for returning values (danger of feedback deadlock)
a handler can be implemented inside components - OnMessage() function
processing can be instant or delayed/scheduled
Event - a message informing that something happened
Command - a message instructing that something should happen

Message Types

Unicast

a component sends a message to another component
in most cases, this can be handled by a direct call
example: pause the game

Multicast

a) component sends a message to subscribers
b) component sends a message to all objects that meet specific criteria
example: notify all nearby units that the player has entered the area
example: collision trigger - notify all subscribers

Broadcast

rarely used, usually for global messages
example: level completed, game over

Action Patterns

Processes and Actions

Process - something that requires more than one frame to finish
- basically everything that involves animations and accumulated player input

Example: Pacman actions

Responsibility ownership

determines which component should be responsible for given scope/action/decision
there is no bulletproof recipe, yet it should be unified within the game
if the scope affects only one entity, it should be a component attached to that entity
- example: a worker that goes to the forest for some wood
if the scope affects more entities, it's often a component/system attached to a parent element up the scene graph (e.g. the root object)
- example: battle formation controller, duel controller (who wins, who loses)

Optimizing Patterns

Flyweight

an object keeps shared data to support large number of fine-grained objects
e.g. instanced rendering, geometry hashing, particle systems
here we move a position and a tile index (Sprite) into an array

Structural Patterns

Selector

a function that returns a value
centralizes the knowledge of how to find an entity/attribute/component
can be used by components to access dynamic data
can form a hierarchy from other selectors

   1  const getPlayer(scene: Scene) => scene.findObjectByName('player');
   2
   3  const getAllUnits(scene: Scene) => scene.findObjectsByTag('unit_basic');
   4
   5  const getAllUnitsWithinRadius(scene: Scene, pos: Vector, radius: number) => {
   6  	return getAllUnits(scene).filter(unit => unit.pos.distance(pos) <= radius);
   7  }
   8
   9  const getAllExits(scene: Scene) => {
  10  	const doors = scene.findObjectsByTag('door');
  11  	return doors.filter(door => !door.locked);
  12  }

State Patterns

Flag

bit array that stores binary properties of game objects
may be used for queries (e.g. find all MOVABLE objects)
similar to a state machine but the use-case is different
if we maintain all flags within one single structure, we can search very fast

Numeric state

the most basic state of an entity
allows us to implement a simple state machine

   1  // stateless, the creature will jump each frame
   2  updateCreature() {
   3    if(eventSystem.isPressed(KeyCode.UP)) {
   4      this.creature.jump();
   5    }
   6  }
   7
   8  // introduction of a state
   9  updateCreature() {
  10    if(eventSystem.isPressed(KeyCode.UP) && this.creature.state !== STATE_JUMPING) {
  11      this.creature.changeState(STATE_JUMPING);
  12      this.creature.jump();
  13    }
  14  }

Creational Patterns

Builder

a template that keeps attributes from which it can build new objects
each method returns back the builder itself, so it can be chained

   1  class Builder {
   2    private _position: Vector;
   3    private _scale: Vector;
   4
   5    position(pos: Vector) {
   6      this.position = pos;
   7      return this;
   8    }
   9
  10    scale(scale: Vector) {
  11      this.scale = scale;
  12      return this;
  13    }
  14
  15    build() {
  16      return new GameObject(this._position, this._scale);
  17    }
  18  }
  19
  20  new Builder().position(new Vector(12, 54)).scale(new Vector(2, 1)).build();

Prototype

Builder builds new objects from scratch, Prototype creates new objects by copying their attributes
in some implementations, the prototype is linked to its objects - if we change the prototype, it will affect all derived entities
e.g. templates in Godot, linked prefabs in Unity and Unreal engine

Factory

Builder assembles an object, Factory manages the assembling
Factory creates an object according to the parameters but with respect to the context

   1  class UnitFactory {
   2
   3    private pikemanBuilder: Builder; // preconfigured to build pikemans
   4    private musketeerBuilder: Builder; // preconfigured to build musketeers
   5    private archerBuilder: Builder; // preconfigured to build archers
   6
   7    public spawnPikeman(position: Vector, faction: FactionType): GameObject {
   8      return this.pikeman.position(position).faction(faction).build();
   9    }
  10
  11    public spawnMusketeer(position: Vector, faction: FactionType): GameObject {
  12      return this.musketeerBuilder.position(position).faction(faction).build();
  13    }
  14
  15    public spawnArcher(position: Vector, faction: FactionType): GameObject {
  16      return this.archerBuilder.position(position).faction(faction).build();
  17    }
  18  }

Digital Sound

PCM

pulse-code modulation, a method used to digitally represent sampled analog signals
sample - fundamental unit, representing the amplitude of an audio signal in time
bit depth - each bit of resolution is equal to 6dB of dynamic range
sample rate - number of samples per second: 8 kHz, 22.05 kHz, 44.1 kHz, 48 kHz
frequency - a measure of the number of pulses in a given space of time
frame - collection of samples, one for each output (e.g., 2 for stereo)
buffer - collection of frames in memory, typically 64-4096 samples per buffer
- the greater the buffer, the greater the latency, but less strain being placed on the cpu

Sound synthesizing, recording and composing

Sound generators

generator - oscillator that can make a tone, either independently or by pairing with another generator
- synth music is a combination of generated tones, effects, filters, and recorded sound samples
main synthesis types: additive, subtractive, FM, wavetable

Music in games

Assets

sound cues - collection of audio clips with metadata
sound banks - package of sound clips and cues (e.g. all voices of one person)

Asset categories

diegetic - visible (character voices, sounds of objects, footsteps)
non-diegetic sound - invisible (sountrack, narrator)
background music - ambient music (e.g. river)
score - soundtrack, is clearly recognizable
interface music - button press
custom music (e.g. GTA radio)
alert - music triggered by an event

Dynamics

linear audio - only reflects major changes (e.g. finished level)
dynamic audio - changes in response to changes in the environment or gameplay
adaptive audio - responses to the gameplay, adapts itself based on game attributes

Dynamic music

Features

looping - going around and around
branching - conditional music
layering - some pieces can be muted on and off and re-combined
transitions - moving smoothly from one cue to another

Sounds in games

3D Sound

Attenuation

the further the sound, the quieter it is

Occlusion

how sound is occluded by solid objects, losing its high frequency

Obstruction

when the direct path to a sound is muffled but not enclosed
creates delays

Randomness

Random Functions Distribution

Uniform distribution

most common distribution of random generators
applications: noise, shuffling, dice

Gaussian (normal) distribution

more common in games - every characteristic has some kind of average, with individuals varying with a normal distribution
can be calculated from a uniform generator via transformation (Box-muller algorithm)
applications: height of trees, aiming for projectiles, average speed, physical reaction time, reload rate

Uniform distribution

Gaussian distribution

Terms

Seed

a hash that initializes random generators
a good source of entropy is user input or time

Loot

items obtained over the gameplay (money, spells, equipment, weapons,...)

Spinning

calling the random function on a time-frame basis without using the result
advances the game to a difficult-to-predict place

Rarity Slotting

a method of standardization to determine rates (common, rare, epic, legendary)
can be defined as a rarity table, calculated via weighted sum

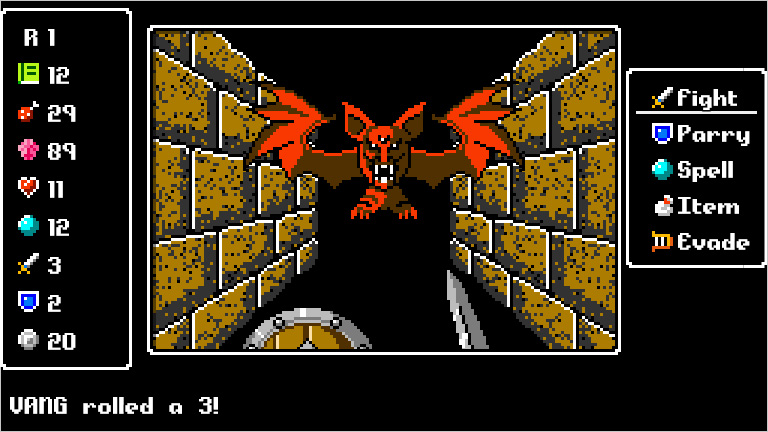

Random encounter

popular mechanics of RPG games (Final Fantasy, Pokémon, Golden Sun)
the game suddenly shifts to battle mode, forcing the player to fight
after winning the battle, the player receives a reward (skill upgrade, items, money)

Procedural generation

Noise

Randomness is used to vary characteristics, noise is used to vary them over time or in space
Noise functions
- Lattice-based

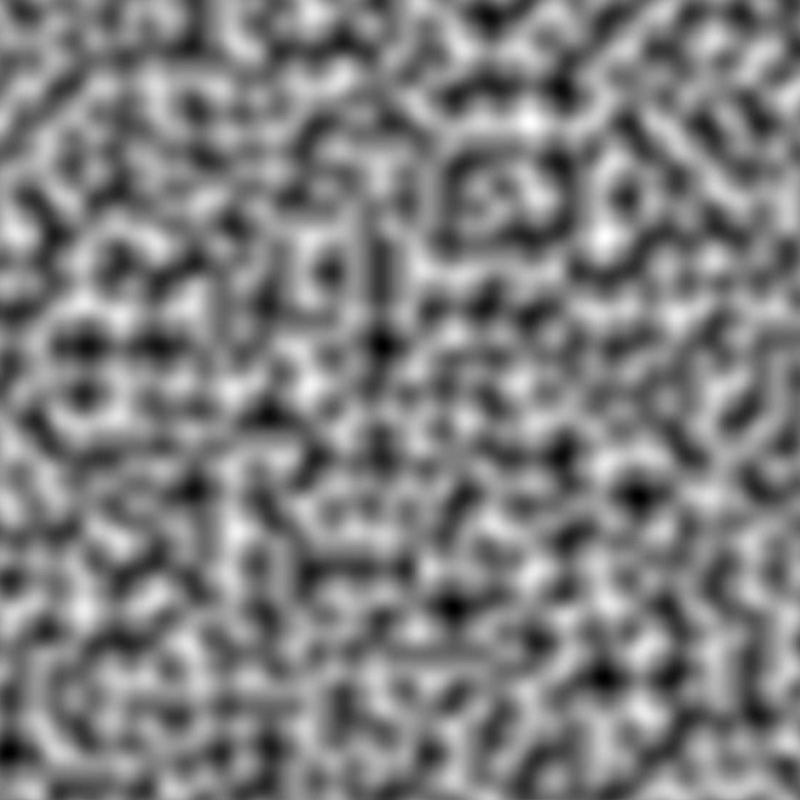

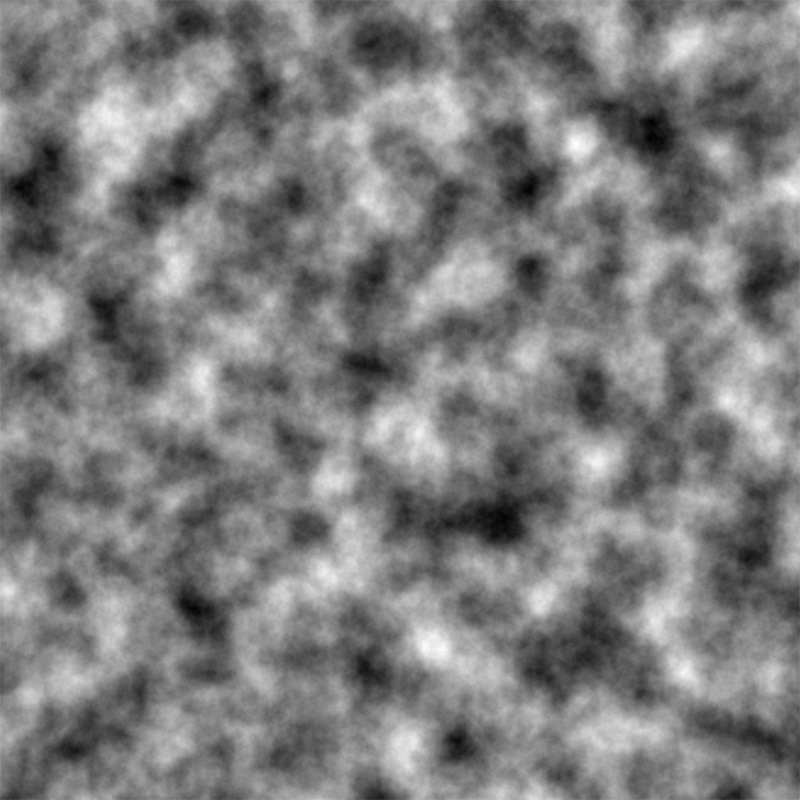

  - Perlin noise, Simplex noise, Wavelet noise, Value noise
- Point-based

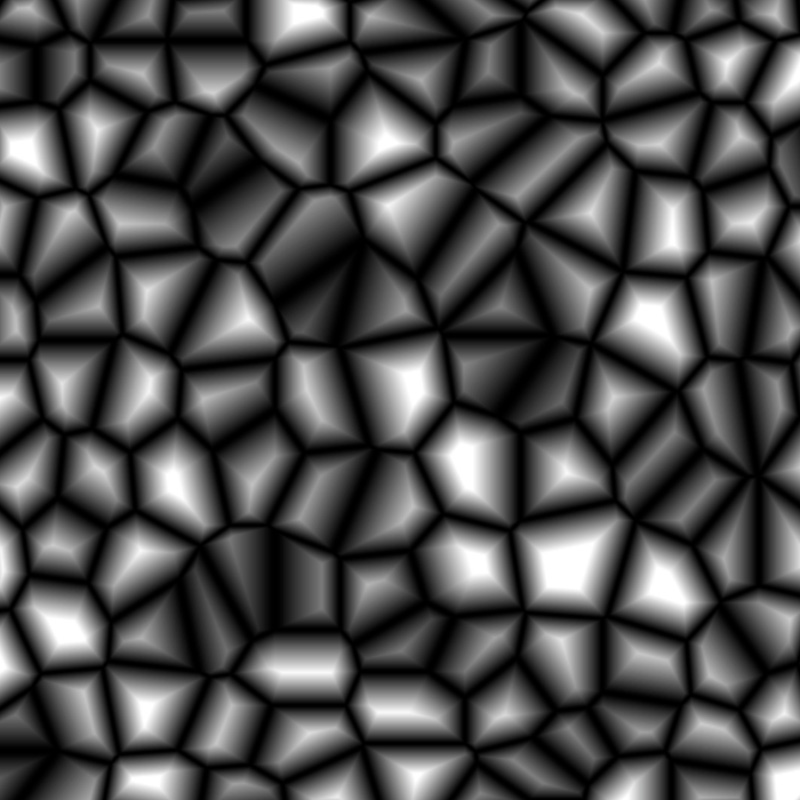

  - Worley noise (Voronoi/Cellular)

Geometric hashing

Spatial partitioning

Bounding volume

groups objects or their parts together based on their positions and sizes
if the object moves, so will the hierarchy
used for physics, shape analysis, precise collision detection

Spatial data structure

a structure that stores objects by their position
is locked to the world
used for range queries, neighborhood searching, rough collision detection
the more objects we have, the more benefits we get

Implementations

Quad-tree - for 2D and semi-3D space
Oct-tree - for 3D space
Grid - a square grid
BSP (binary-space partitioning), portals, anti-portals,...

Oct-tree

Quad-tree

hierarchical partition
each inner node has 4 children
overlapping solid objects are put into all children they touch
only objects in the same leaf can be in collision
useful for outdoor scenes
good for object sparsely spread that do not move too fast

Quad-tree and geometric hashing

Grid

implemented as an 1D/2D/3D array or a hash-table
each cell has a list of units that are inside
if a unit crosses the boundary of the cell, we need to move it to the other list
good for a large amount of fast objects that are uniformly distributed
very fast to locate an object - in sharp contrast with recursing down a quad-tree
takes up more memory, granularity is static

Navigation

Pathfinding algorithms

Uniformed graph searches

ignores any associated edge cost
DFS (depth-first search)
- searches by moving as deep into the graph as possible
- doesn't guarantee to find the best path
BFS (breadth-first-search)
- fans out from the source node, always finds the best path

Cost-based graph searches

Dijkstra's Algorithm
- explores every node in the graph and finds the shortest path to every other node in the graph
- uses CSF (cost-so-far) metric
A* (Dijkstra with a Twist)
- extension of Dijkstra, invented in 1968
- main difference: augmentation of the CSF value with a heuristic value

A*

improved Dijkstra by an estimate of the cost to the target from each node
Cost , where is the cost-so-far and is the heuristic estimate
Heuristics: Euclidean, Manhattan, adaptive, dynamic,...
- Manhattan distance will work if almost no obstacles appear

Improvements

preprocess the map, calculate universal paths
mark tiles which cannot lead anywhere as dead-ends
limit the search space

Pathfinding algorithms: Comparison

breadth-first search ignores the cost
Dijkstra ignores the topology of the graph
A* considers both

Geometry

Points and Vectors

Vector - a quantity that has both a magnitude and a direction
vector can be used to represent a point, provided that we fix the tail of the vector to the origin of the coordinate system

Addition and subtraction

vector + vector = vector
vector - vector = vector
point + vector = point
point - point = vector
point + point = undefined

Vector addition and subtraction

Points and Vectors

Magnitude

scalar representing the length of the vector

Magnitude of a vector

Normalization

a unit vector is a vector with a magnitude of one:

Normal vector

vector is normal to a surface if it is perpendicular to it

Dot product

Cross product

yields another vector that is perpendicular to two vectors

Projection

projection of a vector onto another vector

Steering Behaviors

a set of algorithms that help autonomous agents move in a realistic manner by using simple forces
designed by Crag Reynolds in the early 90's
Agent - a system situated within an environment, with the ability to sense that environment
Motion layers
- action selection - choosing goals, strategy
- steering - trajectory calculation
- locomotion - way of moving, animation, articulation

Steering Behaviors

Seek

the simplest steering behavior
a force that directs an agent toward a target position

Steering Behaviors

Flee

opposite of seek, creates a force that steers the agent away

Arrive

seek + stopping movement, decelerates the agent onto the target

Pursuit

agent intercepts a moving target
predicts where the target is going to be in the future
calls for a good prediction function

Evade

opposite of pursuit
the evader flees from the estimated future position

Steering Behaviors

Wander

produces a force that will give an impression of a random walking
small random displacement is applied to the velocity vector every frame
a circle is projected in front of the vehicle
the vehicle is steered toward a target that moves along the perimeter
parameters: circle radius, distance from the vehicle and jittering (randomness)

Steering Behaviors

Path follow

moves a vehicle along a set of waypoints
the last waypoint can be reached using arrive, the others via seek
smooth movement can be achieved using a tolerance radius or Bézier curve approximation
very sensitive to configuration (max force, max velocity, radius,...)

Physics Engine

Object types

Body

fundamental object in the physics scene

Rigid Body

idealized, infinitely hard, non-deformable solid object
physics-driven bodies - driven entirely by the simulation
game-driven bodies - moved in a non-physical way (animations)
fixed bodies - collision-only bodies (e.g. triggers)

Soft body

deformable

Shape

region of space described by a boundary, with a definite inside and outside (curved line, polygon, curved surface, polyhedron)

Fixture

used to describe size, shape and material properties

Object Types

Constraint

connects bodies together in order to simulate interaction (ropes, wheels, vehicles, chains)

Sensor/Phantom

entity that provides a feedback when certain objects overlap
participates on collision detection but doesn't affect the scene

Rag doll

displays human-like figures with a realistic motion

Destructible object

breakable object, can be implemented by using rigid body dynamics, dividing the model into a number of breakable pieces

Constraints

rope

revolute

prismatic

cone-twist

Particle Systems

a collection of point masses that obeys certain physical laws
can model complex fuzzy shapes and dynamics
uses Flyweight pattern (array of positions, velocities, group lists)
particles are not only moving points! Even a tree may become a particle

Applications

fluids
visual effects
flocks
rendered trails (plants)
soft bodies (flag, cloth)

Collision Detection

Bounding Boxes

Sphere

center point and radius (4 numbers for 3D)

Capsule

2D: rectangle and two circles
3D: cylinder and two hemispherical end-caps
representation: two points and radius

AABB

axis-aligned bounding box
rectangular volume (cuboid) whose faces are parallel to the axes of the coordinate system
very efficient test for penetration
AABB must be recalculated whenever the object rotates

Bounding Boxes

OBB

oriented bounding box
defined by a position and orientation
commonly used

k-DOP

discrete oriented polytope
more general case of AABB and OBB
approximates the shape of an object

Compound shapes

more efficient alternative to a poly-soup
the system first tests bounding volumes of compound shapes

Convex hull

smallest convex volume containing the object

SAT

SAT (separating axis theorem)

if an axis can be found along which the projection of two
convex shapes do not overlap, then the two shapes do not intersect
for 2D: AABB 2 axes, OBB 4 axes
for 3D: AABB 3 axes, OBB 15 axes
AABB in 2D: only 2 axis to test

Tunneling problem

Stepped world

time steps vary based on occurring situation
collision time is calculated by doing binary search in time, moving object back and forth by 1/2 steps (5 iterations is usually enough)

Continuous Collision Detection (CCD)

uses Raycasting or more advanced Swept Shapes technique
Raycasting - the object emits a ray which is tested for intersection
Swept Shapes - a new shape is formed by the motion of the original one

Space

Rotation in 3D space

Rotational representations

Euler angles

Pitch, Yaw, Roll
simple, small size (3 floats), intuitive
the order in which the rotations are performed matters
gimbal lock issue - when a 90-degree rotation causes one axis to collapse onto another

Quaternions

axis + angle + extra algebra
alternative form:
unit-length:
a unit quaternion can be visualised as a 3D vector + scalar
permits rotations to be easily interpolated
can perform only one full rotation between keyframes

Use Euler angles for fast rotation around one axis and quaternions for complex rotations around all axes

Space

Model Space

origin is usually placed at a central location (center of mass)
axes are aligned to natural direction of the model

World Space

fixed coordinate space, in which the transformations of all objects in the game world are expressed

View/Camera Space

coordinate frame fixed to the camera
space origin is placed at the focal point of the camera
OpenGL: camera faces toward negative z

Clip Space

a rectangular prism extending from -1 to 1 (OpenGL)

View/Screen Space

a region of the screen used to display a portion of the final image

World-Model-View

Clip Space

View Volume

View volume - region of space the camera can see
Frustum - the shape of view volume for perspective projection
Rectangular prism - the shape of view volume for orthographic projection
Field of View (FOV) - the angle between the top and bottom of a 2D surface of the projected world

Perspective projection

Orthographic projection

Animations

Interpolation

a method that calculates semi-points within the range of given points

Applications

graphics - image resizing
animations - transformation morphing
multiplayer - game state morphing
audio/video - sample/keyframe interpolation

Main methods

Constant interpolation (none/hold)
Linear interpolation
Cosine interpolation
Cubic interpolation
Bézier interpolation
Hermite interpolation
SLERP (spherical linear interpolation)

SLERP is widely used in animation blending

GPU processing

Terms

Vertex

primarily a point in 3D space with x, y, z coordinates
attributes: position vector, normal, color, uv coordinates, skinning weights,...

Fragment

a sample-sized segment of a rasterized primitive
its size depends on sampling method

Texture

a piece of bitmap that is applied to a model

Occlusion

rendering two triangles that overlap each other

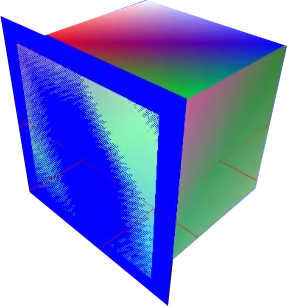

Z-fighting issue
Z-Fighting
solution: more precise depth buffer

Culling

process of removing triangles that aren't facing the camera
frustum culling, portals, anti-portals,...

Shaders

programs that run on the video card in order to perform a variety of specialized functions (lighting, effects, post-processing, physics, AI)

Vertex shader

input is vertex, output is transformed vertex

Geometry shader (optional)

input is n-vertex primitive, output is zero or more primitives

Tessellation shader (optional)

input is primitive, output is subdivided primitive

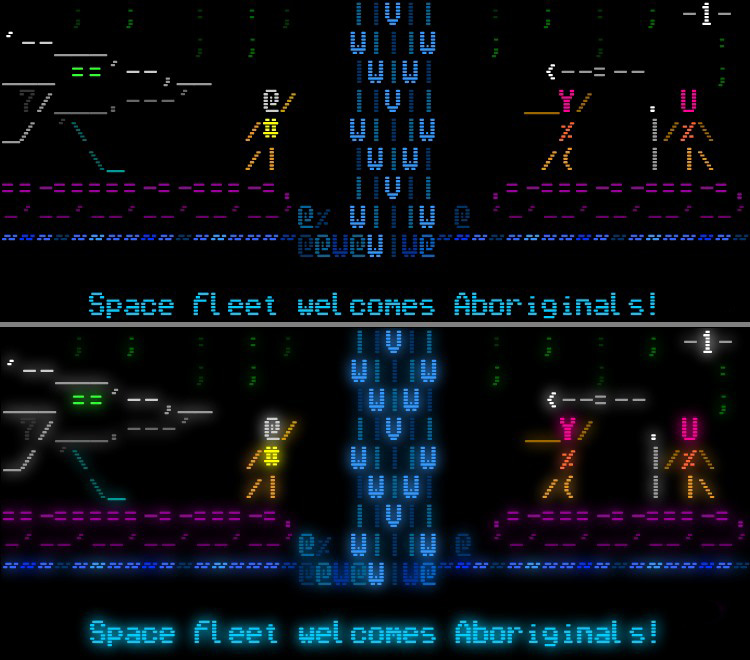

Pixel (fragment) shader

input is fragment, output is color, depth value, stencil value
widely used for visual effects

Compute shader

shader that runs outside of the rendering pipeline (e.g. CUDA)

Rendering concepts

Other techniques

LOD

level of detail, boosts draw distance
pioneered with Spyro the Dragon Series

Texture mapping

mapping of 2D surface (texture map) onto a 3D object
early games have issues with perspective correctness

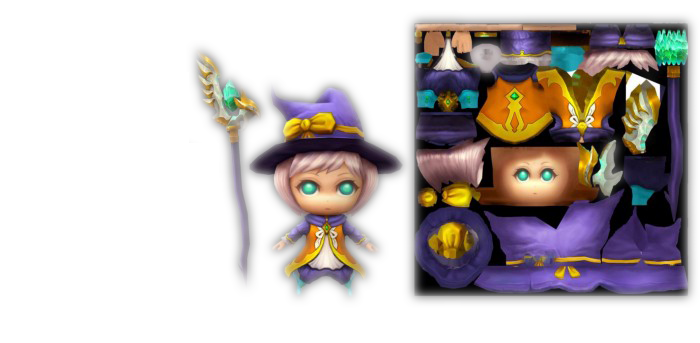

common use - UV mapping

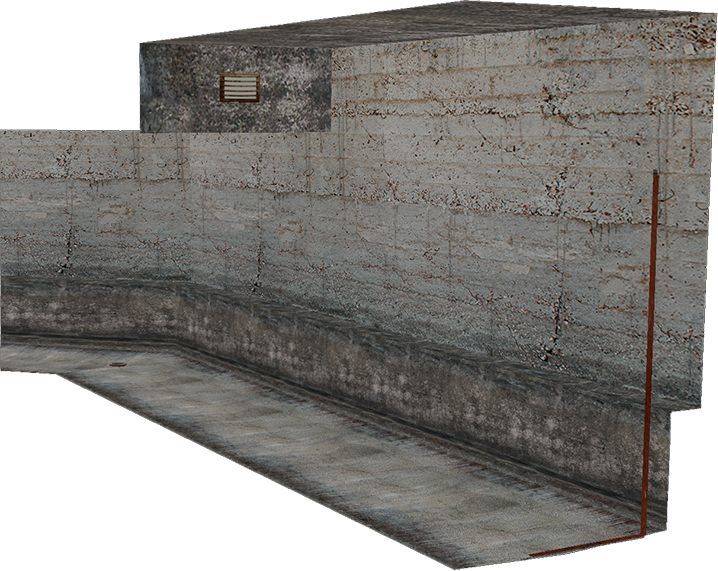

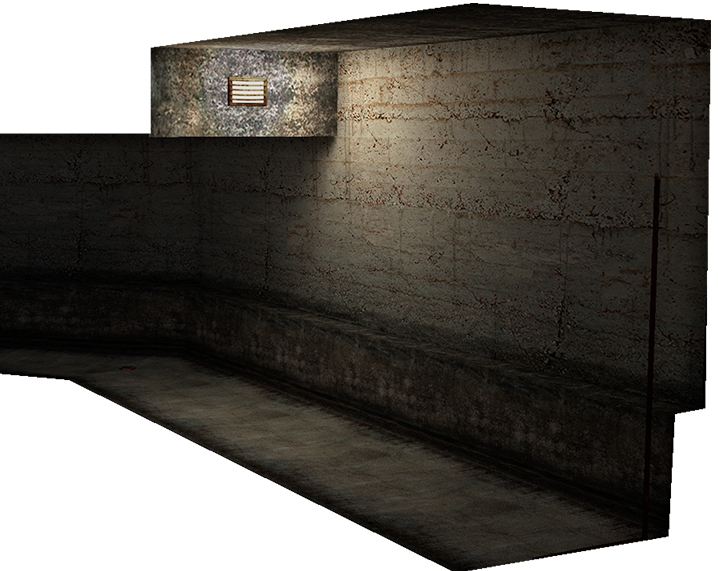

Baking

a.k.a rendering to texture
generating texture maps that describe different properties of the surface of a 3D model
effects are pre-calculated in order to save computational time and circumvent hardware limits

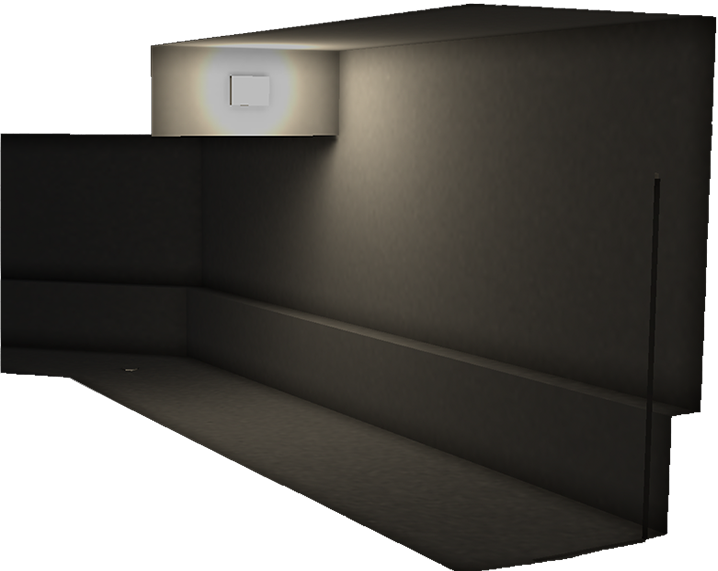

Light baking

common technique to create pre-rendered static lights
is usually combined with dynamic lighting - when a scene has many lights, most of them can be baked
only works for static scenes

AI introduction

Challenges for Game AI

Game AI features and limits

real-time
limited resources
incomplete knowledge
planning
learning
acceleration (strategies)

Game AI properties

predictability and unpredictability (surprise elements)
support - communication between NPC and the player
surprise - harassment, ambush, team support,...
winning well and losing well
cheating - acceptable as long as it doesn't get detected by the player

The AI must be fun to play against, not beat the player easily

AI for mobs

Scripting

IF-THIS-THEN-THAT
AI behavior is completely hardcoded
simple, easy to debug, easy to extend
human player should behave as the developers expected
good scripting behavior must cover a large amount of situations

   1  // Doom 2: find player to chase
   2  void A_Look (mobj_t* actor) {
   3      mobj_t* targ;
   4      actor->threshold = 0;   // any shot will wake up
   5      targ = actor->subsector->sector->soundtarget;
   6        if (actor->flags & MF_AMBUSH){
   7          if (P_CheckSight (actor, actor->target))
   8          goto seeyou;
   9      } else goto seeyou;
  10
  11      if (!P_LookForPlayers (actor, false)) return;
  12      // go into chase state
  13  seeyou:
  14      P_ChasePlayer();
  15  }

Finite State Machine

the oldest and most commonly used formalism to model game AIs
useful for entities with a small set of distinct states
each entity can be in exactly one of a finite number of states at any time
Definition
- quadruple:
- is a finite, non-empty set of states
- is a finite set of inputs
- is the state-transition function
- is an initial state,
can be implemented via polymorphism or a state transition table
unmanageable for large complex systems, leading to transition explosion

Hierarchical state machine

also known as statecharts
each state can have a superstate or a set of substates
groups of states share transitions
usually implemented as a stack
- push a low-level state on the stack when entered
- pop and move to the next state when finished

Behavior Tree

tree of hierarchical nodes that control decision making process
originated from gaming industry since Halo 2 (2004)
combines elements from both Scripting and HFSMs
there is no standardized formalization
depth-first traversal, starting with the root node
each executed behavior passes back and returns a status
- SUCCESS, FAILURE, RUNNING, (SUSPENDED)

Behavior Tree

Node Type	Success	Failure	Running
Selector	If one child succeeds	If all children fail	If one child is running
Sequence	If all children succeed	If one child fails	If one child is running
Decorator	It depends	It depends	It depends
Parallel	If N children succeed	If M-N children succeed	If all children are running
Action	When completed	Upon an error	During completion
Condition	If true	If false	Never

Real AI in games

Terms

Planning

a formalized process of searching for sequence of actions to satisfy a goal

Supervised learning

works just like learning at schools
for certain input, there is a correct output the algorithm has to learn

Unsupervised learning

the output cannot be categorized as being either correct or false
the algorithm learns patterns instead

Reinforcement learning

an agent must learn the best possible output by using trial and error
for each action chosen the agent obtains a feedback

AI in strategies

Real-time strategy

Real-time strategy is a Bayesian, zero-sum game (Rubinstein, 1994)
a game where the player is in control of certain, usually military, assets, with which the player can manipulate in order to achieve victory
goal: build up a base, gather resources, produce army, destroy the enemy
methods: layer-based AI, rule-based AI

Main elements

map, mini-map
resources
units and their attributes
buildings

Other features

real-time aspect (no turns)
fog of war
tech tree

RTS Features

Resource Control

controlling more resources increases the players' constsruction capabilities

Tech tree

a directed acyclic graph that contains the whole technological development of a faction

Build order (opening)

the timing at which the first buildings are constructed

Fog of war

fog that covers the parts of the map the player has not yet explored
requires to scout unexplored areas to find enemy sources

Micromanagement

way of controlling units in detail while they are in combat

Tactics

a set of specific actions used when applying a strategy

Strategy

making decisions knowing what we saw from the opponent

Networking Architecture

Peer-to-peer architecture

each device exchanges data with each other in a fully connected graph
used in Doom, early Command & Conquer series, Age of Empires, Starcraft
given peers, each must have connections -> in total
methods: single master, partial authority, full replication

Client-Server architecture

devices, connections
server must handle more messages per second
server quickly becomes the bottleneck (lack of power and bandwidth)
Dedicated server - only runs the game state and communicates
Listen server - server is an active participant in the game itself

Transport

Message Types

Stream

doesn't need to be confirmed, contains a collection of continuous values (e.g., position change)

Snapshot

complete information of the game state, sent either on demand or at given intervals

Event

messages that have an impact on the game state, have to be confirmed
e.g.: UNIT_CREATED, UNIT_DESTROYED, BUILDING_COMPLETED

Action

high-priority messages (player's inputs, fire button,...)

Procedure Call

a generic message that allows to call any function (play sound, load assets, reset animation)

Connection messages

messages for handshake, ID assignment, disconnect, etc.

Beacon

regular messages to inform the server that the connection is still on

Replication

the act of transmitting a state of an object from one device to another
each object must be uniquely identified (network ID)
the network message contains a type of an object and all parameters required to construct it

switch(actionType) {

case OBJECT_CREATED:

int objectType = reader->ReadDWord();

auto factory = creatorManager->FindObjectFactory(objectType);

auto newInstance = factory->CreateInstance(reader); // parse parameters

objects.push_back(newInstance);

break;

case OBJECT_DELETED:

int objectId = reader->ReadDWord();

sceneManager->removeObjectById(objectId);

...

}

Reliability

packets may get lost
server keeps sending messages that have an impact on the game state until the client accepts them

Ordering

packets may arrive in a different order
the client shouldn't apply a command message to its state before it applies all previous messages

Synchronization

Server-side rewind

dealing with instant actions that affect the gameplay (e.g. instant hit in FPS)

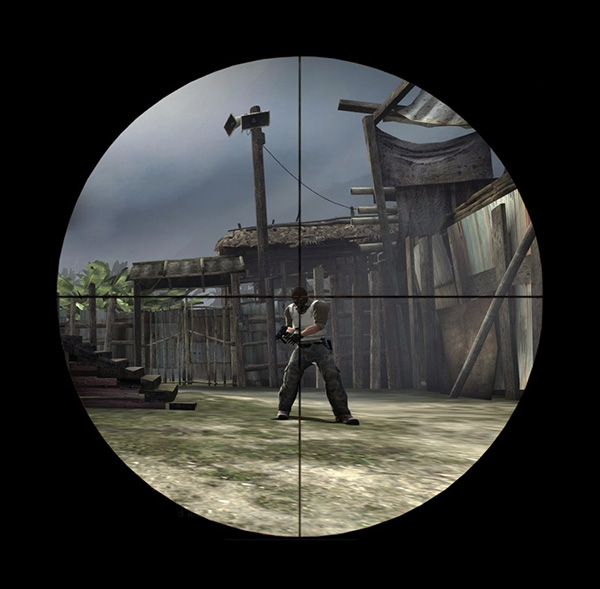

occurs due to the inaccuracies of dead reckoning and time dilation
server may change a state that has already been confirmed

Source engine's approach

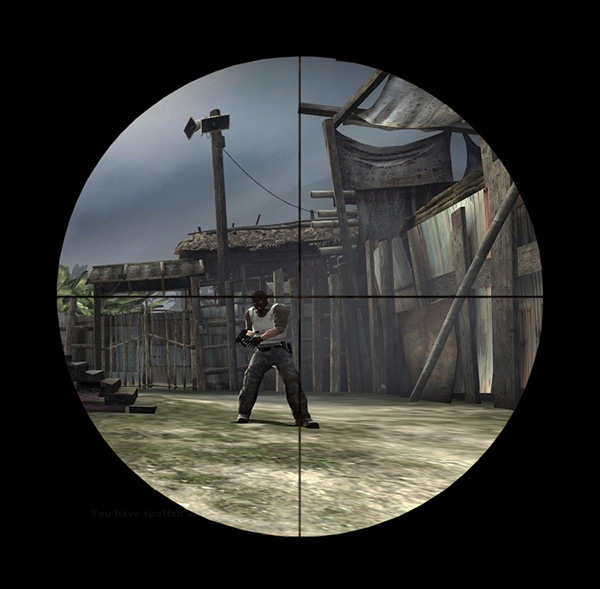

rewinds state on the server to exactly the state in which the player fired
server stores the poses of every relevant object for X last frames and looks up the two frames between which the client was interpolating

Latency handling summary

Time dilation

delays the values by a few frames and interpolates to them

Deterministic prediction

runs simulated code, masks latency and keeps the client's state in sync

Dead reckoning

non-deterministic prediction
client uses the last known state of an object to extrapolate future state

Server-side rewind

the server buffers object positions for several frames to match the client's view when processing instant events

It is better to be wrong on time than right but late

1	const getPlayer(scene: Scene) => scene.findObjectByName('player');
2
3	const getAllUnits(scene: Scene) => scene.findObjectsByTag('unit_basic');
4
5	const getAllUnitsWithinRadius(scene: Scene, pos: Vector, radius: number) => {
6	return getAllUnits(scene).filter(unit => unit.pos.distance(pos) <= radius);
7	}
8
9	const getAllExits(scene: Scene) => {
10	const doors = scene.findObjectsByTag('door');
11	return doors.filter(door => !door.locked);
12	}

1	// stateless, the creature will jump each frame
2	updateCreature() {
3	if(eventSystem.isPressed(KeyCode.UP)) {
4	this.creature.jump();
5	}
6	}
7
8	// introduction of a state
9	updateCreature() {
10	if(eventSystem.isPressed(KeyCode.UP) && this.creature.state !== STATE_JUMPING) {
11	this.creature.changeState(STATE_JUMPING);
12	this.creature.jump();
13	}
14	}

1	class Builder {
2	private _position: Vector;
3	private _scale: Vector;
4
5	position(pos: Vector) {
6	this.position = pos;
7	return this;
8	}
9
10	scale(scale: Vector) {
11	this.scale = scale;
12	return this;
13	}
14
15	build() {
16	return new GameObject(this._position, this._scale);
17	}
18	}
19
20	new Builder().position(new Vector(12, 54)).scale(new Vector(2, 1)).build();

1	class UnitFactory {
2
3	private pikemanBuilder: Builder; // preconfigured to build pikemans
4	private musketeerBuilder: Builder; // preconfigured to build musketeers
5	private archerBuilder: Builder; // preconfigured to build archers
6
7	public spawnPikeman(position: Vector, faction: FactionType): GameObject {
8	return this.pikeman.position(position).faction(faction).build();
9	}
10
11	public spawnMusketeer(position: Vector, faction: FactionType): GameObject {
12	return this.musketeerBuilder.position(position).faction(faction).build();
13	}
14
15	public spawnArcher(position: Vector, faction: FactionType): GameObject {
16	return this.archerBuilder.position(position).faction(faction).build();
17	}
18	}

1	// Doom 2: find player to chase
2	void A_Look (mobj_t* actor) {
3	mobj_t* targ;
4	actor->threshold = 0; // any shot will wake up
5	targ = actor->subsector->sector->soundtarget;
6	if (actor->flags & MF_AMBUSH){
7	if (P_CheckSight (actor, actor->target))
8	goto seeyou;
9	} else goto seeyou;
10
11	if (!P_LookForPlayers (actor, false)) return;
12	// go into chase state
13	seeyou:
14	P_ChasePlayer();
15	}
